Description
General part information

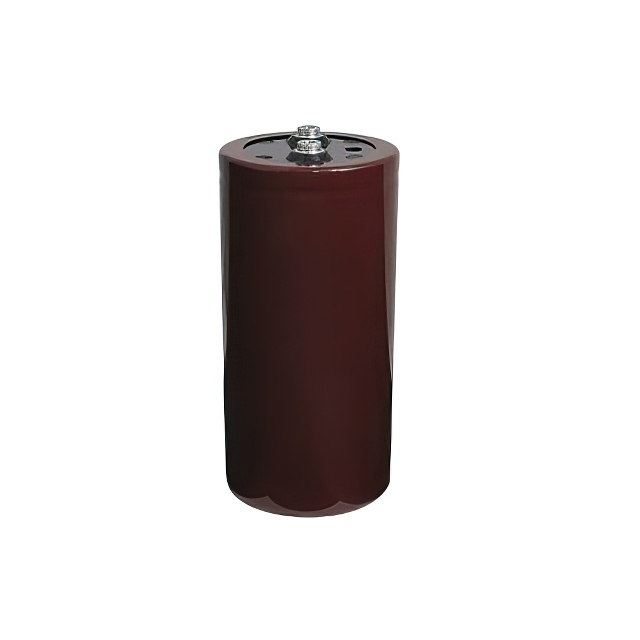

E36D151LPN702TED0U
7 mF 150 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | E36D151LPN702TED0U |
|---|---|
| Applications | General Purpose |
| Capacitance | 7 mF |
| Height - Seated (Max) | 5.118 in |
| Lead Spacing | 1.252 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Size / Dimension Diameter | 3 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 150 VAC |
