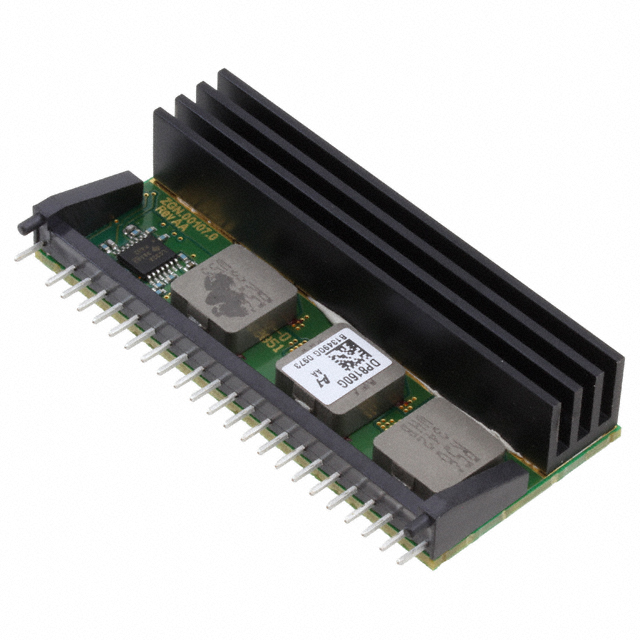

DP8160G-T050

Active

Bel Power Solutions

DC DC CONVERTER 0.7-2.75V

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 0.7-2.75V

Technical Specifications

Parameters and characteristics for this part

Specification	DP8160G-T050

Applications	ITE (Commercial)
Current - Output (Max) [Max]	60 A
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-SIP Module, 23 Leads
Size / Dimension [x]	61 mm
Size / Dimension [x]	2.4 in
Size / Dimension [y]	14 mm
Size / Dimension [y]	0.55 in
Size / Dimension [z]	28 mm
Size / Dimension [z]	1.1 in
Type	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V
Voltage - Input (Min) [Min]	8 V
Voltage - Output 1 [Max]	2.75 V
Voltage - Output 1 [Min]	0.7 V

DC DC CONVERTER 0.7-2.75V

Part	Package / Case	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Input (Min) [Min]	Number of Outputs	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Mounting Type
Bel Power Solutions DP8160G-T050	24-SIP Module, 23 Leads	Non-Isolated PoL Module, Digital	14 mm	0.55 in	61 mm	28 mm	1.1 in	2.4 in	14 V	2.75 V	0.7 V	8 V	1	ITE (Commercial)	85 °C	-40 °C	60 A	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.7 ~ 2.75V 60A 8V - 14V Input

Technical documentation and resources

No documents available
