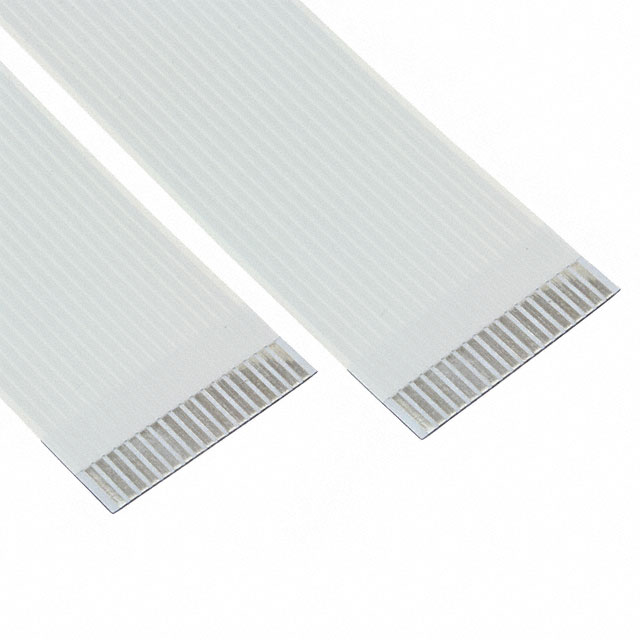

Specification	0152670343

Cable Type	FPC, FFC
Length	0.5 ft
Length - Exposed Ends	0.157 in
Number of Conductors	18
Pitch	0.039 in
Termination Style	Backers on Both Sides, Top on Both Sides

015267 Series

FFC / FPC Jumper Cables Premo-Flex 1.00 Jmpr Lgt 152 TypeA 8Ckt

...

Part	Termination Style	Number of Conductors	Length - Exposed Ends	Pitch	Length	Cable Type
Molex 0152670204	Backers on Both Sides Bottom on Other Top on One Side	6	0.157 in	0.039 in	2 in	FFC FPC
Molex 0152670253	Backers on Both Sides Top on Both Sides	10	0.157 in	0.039 in	5 in	FFC FPC
Molex 0152670456	Backers on Both Sides Bottom on Other Top on One Side	28	0.157 in	0.039 in	7 in	FFC FPC
Molex 0152670221	Backers on Both Sides Top on Both Sides	6	0.157 in	0.039 in	12 in	FFC FPC
Molex 0152670543	Backers on Both Sides Top on Both Sides	36	0.157 in	0.039 in	7 in	FFC FPC
Molex 0152671050	Backers on Both Sides Bottom on Other Top on One Side	33	0.157 in	0.039 in	12 in	FFC FPC
Molex 0152670962	Backers on Both Sides Bottom on Other Top on One Side	25	0.157 in	0.039 in	12 in	FFC FPC
Molex 0152670884	Backers on Both Sides Bottom on Other Top on One Side	19	0.157 in	0.039 in	5 in	FFC FPC
Molex 0152670276	Backers on Both Sides Bottom on Other Top on One Side	12	0.157 in	0.039 in	5 in	FFC FPC
Molex 0152670725	Backers on Both Sides Top on Both Sides	5	0.157 in	0.039 in	2 in	FFC FPC
