VN750PS-E
ActiveSTMicroelectronics

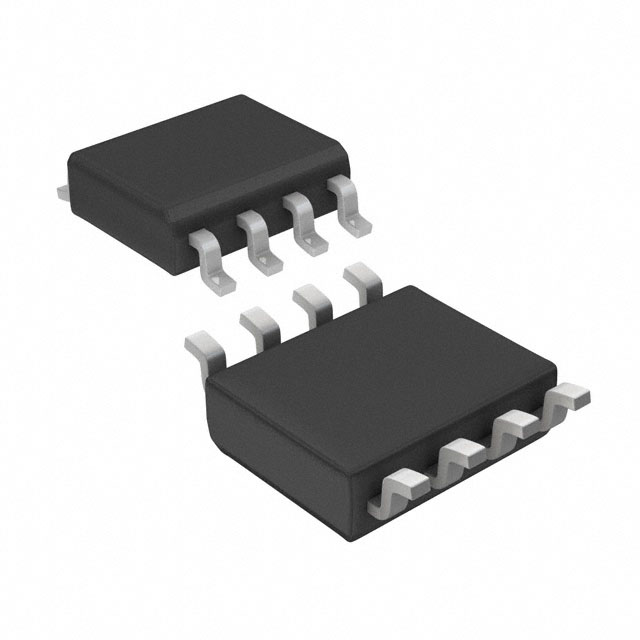

IC PWR DRIVER N-CHANNEL 1:1 8SO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VN750PS-E | VN750 Series |
|---|---|---|
| Current - Output (Max) [Max] | 6 A | 6 A |
| Fault Protection | Current Limiting (Fixed), Over Voltage, Over Temperature, Open Load Detect | Current Limiting (Fixed), Over Voltage, Over Temperature, Open Load Detect |
| Features | Status Flag, Auto Restart | Status Flag, Auto Restart |
| Input Type | Non-Inverting | Non-Inverting |
| Interface | On/Off | On/Off |
| Mounting Type | Surface Mount | Surface Mount, Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | High Side | High Side |
| Output Type | N-Channel | N-Channel |
| Package / Case | 8-SOIC | 8-SOIC, PowerSSO-12, Pentawatt-5 (Vertical, Bent and Staggered Leads), P2PAK (4 Leads + Tab), DPAK (4 Leads + Tab), TO-252-5, TO-252AD |
| Package / Case [x] | 0.154 in | 0.154 in |
| Package / Case [y] | 3.9 mm | 3.9 mm |
| Ratio - Input:Output [custom] | 1:1 | 1:1 |
| Rds On (Typ) | 60 mOhm | 60 mOhm |
| Supplier Device Package | 8-SO | 8-SO, PowerSSO-12™, 5-PENTAWATT, P2PAK, PPAK, 8-SOIC |
| Switch Type | General Purpose | General Purpose |
| Voltage - Load [Max] | 36 V | 36 V |
| Voltage - Load [Min] | 5.5 V | 5.5 V |
| Voltage - Supply (Vcc/Vdd) | False | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
VN750 Series
IC PWR DRIVER N-CHANNEL 1:1 8SO
| Part | Fault Protection | Ratio - Input:Output [custom] | Mounting Type | Interface | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case [y] | Package / Case [x] | Output Type | Rds On (Typ) | Input Type | Switch Type | Voltage - Load [Min] | Voltage - Load [Max] | Output Configuration | Voltage - Supply (Vcc/Vdd) | Supplier Device Package | Features | Current - Output (Max) [Max] | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics VN750PS-E | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | 1:1 | Surface Mount | On/Off | 150 °C | -40 °C | 8-SOIC | 3.9 mm | 0.154 in | N-Channel | 60 mOhm | Non-Inverting | General Purpose | 5.5 V | 36 V | High Side | 8-SO | Auto Restart, Status Flag | 6 A | 1 | |
STMicroelectronics VN750PEP-E | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | 1:1 | Surface Mount | On/Off | 150 °C | -40 °C | PowerSSO-12 | N-Channel | 60 mOhm | Non-Inverting | General Purpose | 5.5 V | 36 V | High Side | PowerSSO-12™ | Auto Restart, Status Flag | 6 A | 1 | |||
STMicroelectronics VN750 | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | 1:1 | Through Hole | On/Off | 150 °C | -40 °C | Pentawatt-5 (Vertical, Bent and Staggered Leads) | N-Channel | 60 mOhm | Non-Inverting | General Purpose | 5.5 V | 36 V | High Side | 5-PENTAWATT | Auto Restart, Status Flag | 6 A | 1 | |||
STMicroelectronics VN750-B513TR | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | 1:1 | Surface Mount | On/Off | 150 °C | -40 °C | P2PAK (4 Leads + Tab) | N-Channel | 60 mOhm | Non-Inverting | General Purpose | 5.5 V | 36 V | High Side | P2PAK | Auto Restart, Status Flag | 6 A | 1 | |||
STMicroelectronics VN750PT-E | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | 1:1 | Surface Mount | On/Off | 150 °C | -40 °C | DPAK (4 Leads + Tab), TO-252-5, TO-252AD | N-Channel | 60 mOhm | Non-Inverting | General Purpose | 5.5 V | 36 V | High Side | PPAK | Auto Restart, Status Flag | 6 A | 1 | |||
STMicroelectronics VN750-B5 | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | 1:1 | Surface Mount | On/Off | 150 °C | -40 °C | P2PAK (4 Leads + Tab) | N-Channel | 60 mOhm | Non-Inverting | General Purpose | 5.5 V | 36 V | High Side | P2PAK | Auto Restart, Status Flag | 6 A | 1 | |||
STMicroelectronics VN750S-E | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | 1:1 | Surface Mount | On/Off | 150 °C | -40 °C | 8-SOIC | 3.9 mm | 0.154 in | N-Channel | 60 mOhm | Non-Inverting | General Purpose | 5.5 V | 36 V | High Side | 8-SOIC | Auto Restart, Status Flag | 6 A | 1 | |
STMicroelectronics VN750PEPTR-E | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | 1:1 | Surface Mount | On/Off | 150 °C | -40 °C | PowerSSO-12 | N-Channel | 60 mOhm | Non-Inverting | General Purpose | 5.5 V | 36 V | High Side | PowerSSO-12™ | Auto Restart, Status Flag | 6 A | 1 |
Description
General part information
VN750 Series
Power Switch/Driver 1:1 N-Channel 6A 8-SO
