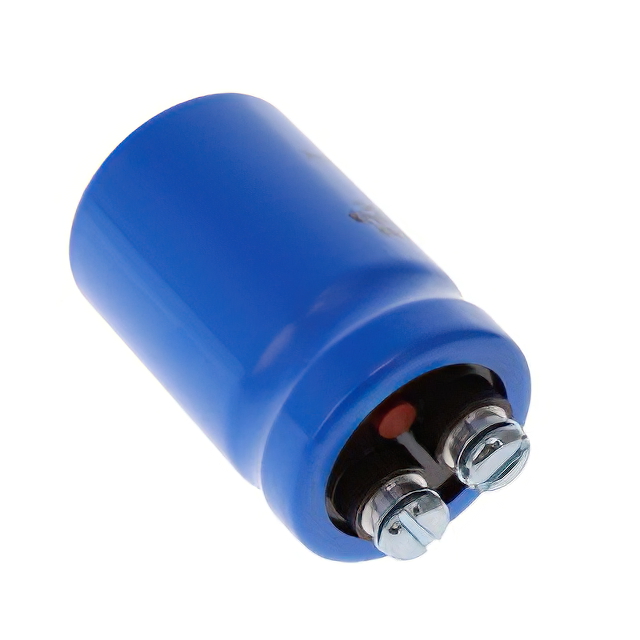

DCMC363U035AC2B
ActiveCornell Dubilier Knowles
CAP ALUM 36000UF 35V SCREW CHAS
DCMC363U035AC2B
ActiveCornell Dubilier Knowles
CAP ALUM 36000UF 35V SCREW CHAS
Description
General part information
DCMC363U035AC2B
36000 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 20.1mOhm @ 120Hz 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | DCMC363U035AC2B |
|---|---|
| Applications | General Purpose |
| Capacitance | 36 mF |
| ESR (Equivalent Series Resistance) | 20.1 mOhm |
| Height - Seated (Max) | 4.187 in |
| Lead Spacing | 0.5 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 11.2 A, 10 A |
| Size / Dimension Diameter | 1.375 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 75 % |
| Voltage - Rated | 35 V |
