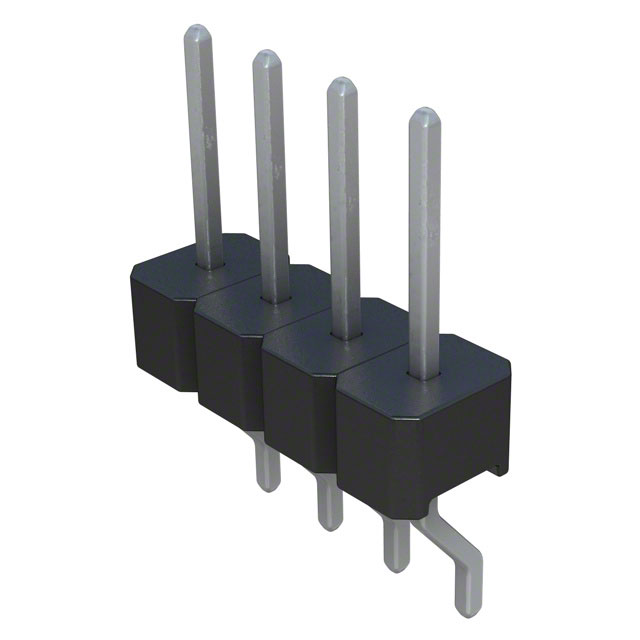

Specification	GREC004SBSN-M89RC

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.23 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.138 in
Insulation Material	Nylon 9T, Polyamide (PA9T)
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.1 in
Shrouding	Unshrouded
Style	Board, Board or Cable
Termination	Solder

GREC0 Series

Part	Contact Finish - Mating	Connector Type	Number of Positions Loaded	Insulation Color	Material Flammability Rating	Contact Material	Shrouding	Style	Termination	Contact Shape	Pitch - Mating	Insulation Material	Operating Temperature (Min)	Operating Temperature (Max)	Contact Length - Mating	Number of Positions	Number of Rows	Contact Type	Insulation Height	Contact Finish - Post	Mounting Type	Fastening Type	Current Rating (Per Contact)
Sullins Connector Solutions GREC013SBSN-M89RC	Tin	Header	All	Black	UL94 V-0	Brass	Unshrouded	Board Board or Cable	Solder	Square	0.1 in	Nylon 9T Polyamide (PA9T)	-40 °C	105 °C	0.23 in	13	1	Male Pin	0.138 in	Tin	Right Angle Surface Mount	Push-Pull	3 A
Sullins Connector Solutions GREC012SBSN-M89RC	Tin	Header	All	Black	UL94 V-0	Brass	Unshrouded	Board Board or Cable	Solder	Square	0.1 in	Nylon 9T Polyamide (PA9T)	-40 °C	105 °C	0.23 in	12	1	Male Pin	0.138 in	Tin	Right Angle Surface Mount	Push-Pull	3 A
Sullins Connector Solutions GREC024SBSN-M89RC	Tin	Header	All	Black	UL94 V-0	Brass	Unshrouded	Board Board or Cable	Solder	Square	0.1 in	Nylon 9T Polyamide (PA9T)	-40 °C	105 °C	0.23 in	24 pos	1	Male Pin	0.138 in	Tin	Right Angle Surface Mount	Push-Pull	3 A
Sullins Connector Solutions GREC027SBSN-M89RC	Tin	Header	All	Black	UL94 V-0	Brass	Unshrouded	Board Board or Cable	Solder	Square	0.1 in	Nylon 9T Polyamide (PA9T)	-40 °C	105 °C	0.23 in	27	1	Male Pin	0.138 in	Tin	Right Angle Surface Mount	Push-Pull	3 A
Sullins Connector Solutions GREC023SBSN-M89RC	Tin	Header	All	Black	UL94 V-0	Brass	Unshrouded	Board Board or Cable	Solder	Square	0.1 in	Nylon 9T Polyamide (PA9T)	-40 °C	105 °C	0.23 in	23	1	Male Pin	0.138 in	Tin	Right Angle Surface Mount	Push-Pull	3 A
Sullins Connector Solutions GREC029SBSN-M89RC	Tin	Header	All	Black	UL94 V-0	Brass	Unshrouded	Board Board or Cable	Solder	Square	0.1 in	Nylon 9T Polyamide (PA9T)	-40 °C	105 °C	0.23 in	29	1	Male Pin	0.138 in	Tin	Right Angle Surface Mount	Push-Pull	3 A
Sullins Connector Solutions GREC028SBSN-M89RC	Tin	Header	All	Black	UL94 V-0	Brass	Unshrouded	Board Board or Cable	Solder	Square	0.1 in	Nylon 9T Polyamide (PA9T)	-40 °C	105 °C	0.23 in	28	1	Male Pin	0.138 in	Tin	Right Angle Surface Mount	Push-Pull	3 A
Sullins Connector Solutions GREC021SBSN-M89RC	Tin	Header	All	Black	UL94 V-0	Brass	Unshrouded	Board Board or Cable	Solder	Square	0.1 in	Nylon 9T Polyamide (PA9T)	-40 °C	105 °C	0.23 in	21	1	Male Pin	0.138 in	Tin	Right Angle Surface Mount	Push-Pull	3 A
Sullins Connector Solutions GREC030SBSN-M89RC	Tin	Header	All	Black	UL94 V-0	Brass	Unshrouded	Board Board or Cable	Solder	Square	0.1 in	Nylon 9T Polyamide (PA9T)	-40 °C	105 °C	0.23 in	30	1	Male Pin	0.138 in	Tin	Right Angle Surface Mount	Push-Pull	3 A
Sullins Connector Solutions GREC003SBSN-M89RC	Tin	Header	All	Black	UL94 V-0	Brass	Unshrouded	Board Board or Cable	Solder	Square	0.1 in	Nylon 9T Polyamide (PA9T)	-40 °C	105 °C	0.23 in	3	1	Male Pin	0.138 in	Tin	Right Angle Surface Mount	Push-Pull	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
