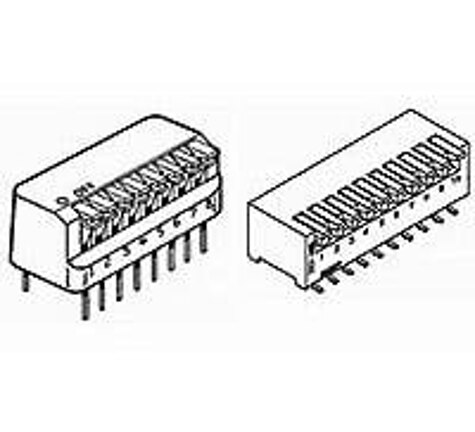

5435802-1
ObsoleteTE Connectivity AMP Connectors
DIP SWITCHES / SIP SWITCHES SPST 8POS R/A PIANO T/H DIP SWITCH
5435802-1
ObsoleteTE Connectivity AMP Connectors
DIP SWITCHES / SIP SWITCHES SPST 8POS R/A PIANO T/H DIP SWITCH
Description
General part information
5435802-1
DIP SWITCHES / SIP SWITCHES SPST 8POS R/A PIANO T/H DIP SWITCH
Technical Specifications
Parameters and characteristics for this part
| Specification | 5435802-1 |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Piano |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 0.025 A |
| Height Above Board | 0.29 in |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 8 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.1 in |
| Pitch Type | Full |
| Termination Style | PC Pin |
| Voltage Rating | 24 V |
| Washable | No |
