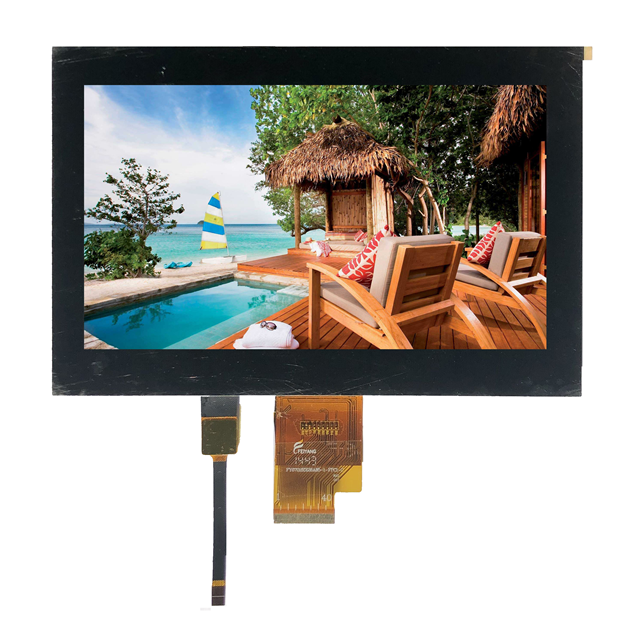

ATM0700L61K-CT

Active

AZ Displays

7.0" IPS LCD 1024 X 600 W/ PCAP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATM0700L61K-CT

Active

AZ Displays

7.0" IPS LCD 1024 X 600 W/ PCAP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 85.46
		30	$ 79.94
		120	$ 73.25

Description

General part information

ATM0700 Series

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) LVDS 7" (177.80mm) 1024 x 600

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATM0700L61K-CT	ATM0700 Series

Background Color	White	White, Black
Backlight	LED	LED
Controller Type	-	FT5316
Diagonal Screen Size	177.8 mm	177.8 mm
Diagonal Screen Size	7 in	7 in
Display Mode	Transmissive	Transmissive
Display Type	TFT - Color, IPS (In-Plane Switching)	TFT - Color, IPS (In-Plane Switching), TFT - Color, TN - Twisted Nematic
Dot Pitch [x]	0.05 mm	0.05 - 0.06 mm
Dot Pitch [y]	0.15 mm	0.14 - 0.19 mm
Dot Pixels [x]	1024	800 - 1024
Dot Pixels [y]	600 pixels	480 - 600 pixels
Dot Size	-	0.15 mm
Dot Size [x]	0.15 mm	0.15 - 0.19 mm
Dot Size [y]	0.15 mm	0.12 - 0.18 mm
Graphics Color	Green, Red, Blue	Green, Red, Blue
Interface	LVDS	LVDS, 24-Bit (RGB), MIPI
Interface	-	18
Touchscreen	Capacitive	Capacitive, Resistive
Viewing Area	-	93.04 mm
Viewing Area [x]	154.2 mm	154.08 - 156.7 mm
Viewing Area [y]	85.92 mm	85.92 - 155 mm

ATM0700 Series

GRAPHIC DISPLAY TFT RGB 7"

Part	Interface	Dot Size [x]	Dot Size [y]	Graphics Color	Backlight	Viewing Area [y]	Viewing Area [x]	Display Type	Background Color	Dot Pixels [x]	Dot Pixels [y]	Display Mode	Dot Pitch [y]	Dot Pitch [x]	Diagonal Screen Size	Diagonal Screen Size	Dot Size [z]	Viewing Area [z]	Touchscreen
AZ Displays ATM0700L61	LVDS	0.15 mm	0.15 mm	Blue, Green, Red	LED	85.92 mm	154.2 mm	TFT - Color, IPS (In-Plane Switching)	White	1024	600 pixels	Transmissive	0.15 mm	0.05 mm	177.8 mm	7 in
AZ Displays ATM0700L61K	LVDS		0.12 mm	Blue, Green, Red	LED	85.92 mm	154.08 mm	TFT - Color, IPS (In-Plane Switching)	White	1024	600 pixels	Transmissive	0.15 mm	0.05 mm	177.8 mm	7 in	0.15 mm
AZ Displays ATM0700L74	LVDS			Blue, Green, Red	LED	155 mm		TFT - Color, IPS (In-Plane Switching)	Black	800	480	Transmissive	0.19 mm	0.06 mm	177.8 mm	7 in		93.04 mm
AZ Displays ATM0700D38B-CTN				Blue, Green, Red	LED	87 mm	154.6 mm	TFT - Color	White	800	480	Transmissive	0.18 mm	0.06 mm	177.8 mm	7 in
AZ Displays ATM0700H1-CT	24-Bit (RGB)			Blue, Green, Red	LED	87 mm	154.6 mm	TFT - Color, TN - Twisted Nematic	White	800	480	Transmissive	0.18 mm	0.06 mm	177.8 mm	7 in			Capacitive
AZ Displays ATM0700M61K-CT	MIPI			Blue, Green, Red	LED	86.92 mm	155.08 mm	TFT - Color, IPS (In-Plane Switching)	Black	1024	600 pixels	Transmissive	0.14 mm	0.05 mm	177.8 mm	7 in			Capacitive
AZ Displays ATM0700L6B	LVDS	0.19 mm	0.18 mm	Blue, Green, Red	LED	85.92 mm	154.08 mm	TFT - Color	White	800	480	Transmissive	0.18 mm	0.06 mm	177.8 mm	7 in
AZ Displays ATM0700M61K	MIPI			Blue, Green, Red	LED	89.45 mm	156.68 mm	TFT - Color, IPS (In-Plane Switching)	Black	1024	600 pixels	Transmissive	0.14 mm	0.05 mm	177.8 mm	7 in
AZ Displays ATM0700L61K-CT	LVDS	0.15 mm	0.15 mm	Blue, Green, Red	LED	85.92 mm	154.2 mm	TFT - Color, IPS (In-Plane Switching)	White	1024	600 pixels	Transmissive	0.15 mm	0.05 mm	177.8 mm	7 in			Capacitive
AZ Displays ATM0700L6J	LVDS	0.19 mm	0.18 mm	Blue, Green, Red	LED	85.92 mm	154.08 mm	TFT - Color	White	800	480	Transmissive	0.18 mm	0.06 mm	177.8 mm	7 in
