17280-2PG-300

Active

Conxall/Switchcraft

CONN RCPT MALE 2POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 2POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	17280-2PG-300

Applications	Medical, Data, Instrumentation, Industrial
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

CONN RCPT MALE 2POS GOLD CRIMP

Part	Fastening Type	Ingress Protection	Primary Material	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Material Flammability Rating	Contact Material	Current Rating (Amps)	Mounting Feature	Applications	Color	Number of Positions	Voltage Rating	Connector Type	Termination	Contact Finish - Mating
Conxall/Switchcraft 17280-2PG-300	Bayonet Lock	IP67 - Dust Tight, Waterproof	Plastic	Keyed	85 °C	-40 °C	Unshielded	UL94 HB	Copper Alloy	7.5 A	Bulkhead - Front Side Nut	Data, Industrial, Instrumentation, Medical	Black	2	600 VAC	Male Pins, Receptacle	Crimp	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

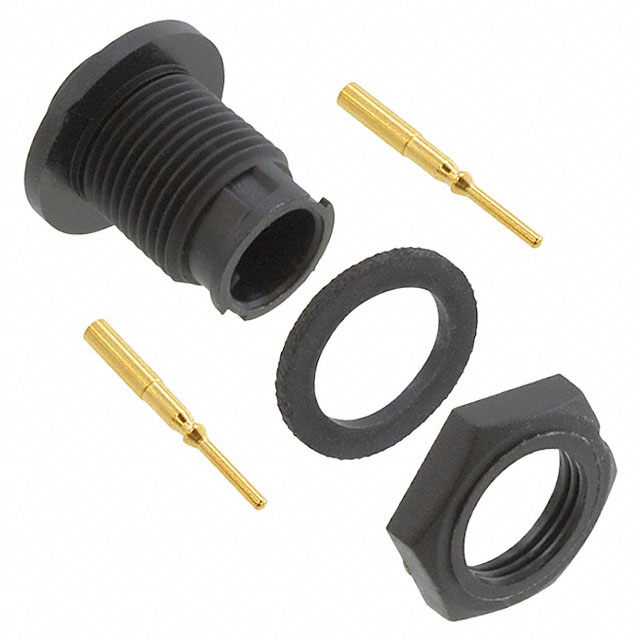

2 Position Circular Connector Receptacle, Male Pins Crimp
