U.FL-2LP-088N1T-A-(60)
ObsoleteHirose Electric Co Ltd
CBL ASSY U.FL PLUG-PLUG 2.362"
U.FL-2LP-088N1T-A-(60)
ObsoleteHirose Electric Co Ltd
CBL ASSY U.FL PLUG-PLUG 2.362"
Description
General part information
U.FL-2LP-088N1T-A-(60)

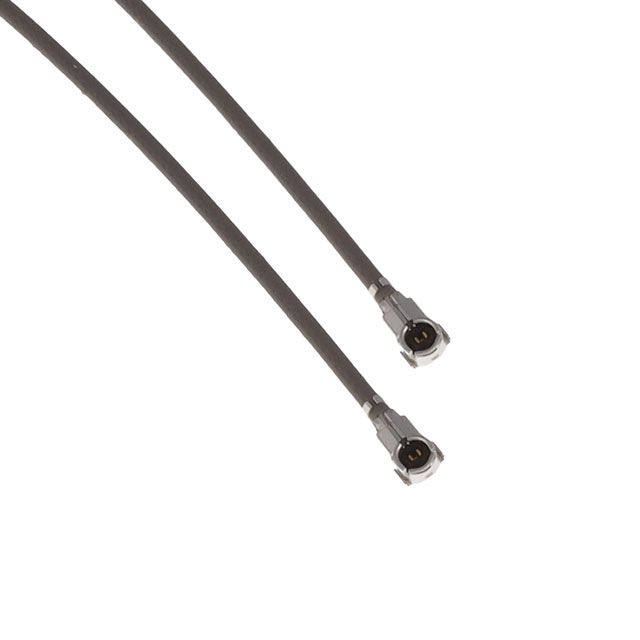

Cable Assembly Coaxial U.FL (UMCC) to U.FL (UMCC) 1.37mm OD Coaxial Cable 2.362" (60.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | U.FL-2LP-088N1T-A-(60) |
|---|---|
| 1st Connector | U.FL (UMCC) Plug, Right Angle |
| 1st Connector - Orientation | Right Angle |
| 1st Connector - Type | U.FL (UMCC) Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, U.FL (UMCC) Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Outer Diameter | 1.37 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable |
| Cable Type Size | 1.37 |
| Color | Gray |
| Length | 2.362 in |
| Style | U.FL (UMCC) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
