SRP0610-6R8K
ObsoleteBourns Inc.
FIXED IND 6.8UH 2.3A 173MOHM SMD
SRP0610-6R8K
ObsoleteBourns Inc.
FIXED IND 6.8UH 2.3A 173MOHM SMD
Description
General part information
SRP0610-6R8K

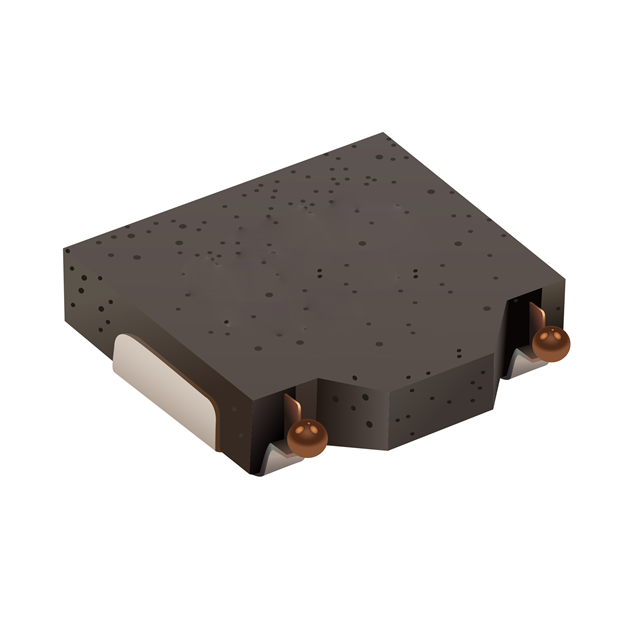

6.8 µH Shielded Inductor 2.3 A 173mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SRP0610-6R8K |
|---|---|
| Current - Saturation (Isat) | 3.6 A |
| Current Rating | 2.3 A |
| DC Resistance (DCR) (Max) | 173 mOhm |
| Frequency - Self Resonant | 17 MHz |
| Height - Seated (Max) | 0.039 in |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Q | 24 |
| Shielding | Shielded |
| Size / Dimension Length | 0.28 in |
| Size / Dimension Width | 0.264 in |
| Tolerance | 10 % |
