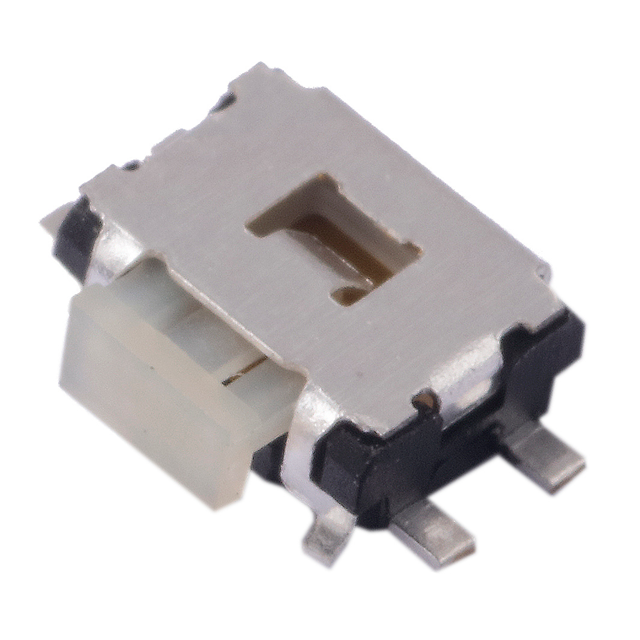

223HMSAARBG
ActiveCTS Electrocomponents
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
223HMSAARBG
ActiveCTS Electrocomponents
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 223HMSAARBG | 223HMS Series |
|---|---|---|
| Actuator Length, Right Angle [x] | 4.5 mm | 4.5 mm |
| Actuator Orientation | Side Actuated | Side Actuated |
| Actuator Type | Rectangular Button | Rectangular Button |
| Circuit | SPST-NO | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC | 0.05 - 12 A |
| Features | Grounding Pin, Board Guide | Grounding Pin, Board Guide |
| Illumination | Non-Illuminated | Non-Illuminated |
| Mechanical Life | 200000 Cycles | 100000 - 200000 Cycles |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Operating Force | - | 220 gf |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Outline [x] | 6.4 mm | 6.4 mm |
| Outline [y] | 3.5 mm | 3.5 mm |
| Switch Function | Off-Mom | Off-Mom |
| Switch Travel | 0.25 mm | 0.25 mm |
| Switch Travel | - | 0.3 mm |
| Termination Style | Gull Wing | Gull Wing |
223HMS Series
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Actuator Type | Contact Rating @ Voltage | Illumination | Outline [x] | Outline [y] | Switch Travel [custom] | Switch Function | Operating Force | Mechanical Life | Mounting Type | Actuator Length, Right Angle [x] | Actuator Orientation | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Features | Switch Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CTS Electrocomponents 223HMSABR | Rectangular Button | 0.05 A, 12 VDC | Non-Illuminated | 6.4 mm | 3.5 mm | 0.3 mm | Off-Mom | 220 gf | 100000 Cycles | Surface Mount, Right Angle | 4.5 mm | Side Actuated | Gull Wing | 85 °C | -40 °C | SPST-NO | ||
CTS Electrocomponents 223HMSABRB | Rectangular Button | 0.05 A, 12 VDC | Non-Illuminated | 6.4 mm | 3.5 mm | 0.3 mm | Off-Mom | 220 gf | 100000 Cycles | Surface Mount, Right Angle | 4.5 mm | Side Actuated | Gull Wing | 85 °C | -40 °C | SPST-NO | Grounding Pin | |
CTS Electrocomponents 223HMSAARBG | Rectangular Button | 0.05 A, 12 VDC | Non-Illuminated | 6.4 mm | 3.5 mm | Off-Mom | 200000 Cycles | Surface Mount, Right Angle | 4.5 mm | Side Actuated | Gull Wing | 85 °C | -40 °C | SPST-NO | Board Guide, Grounding Pin | 0.25 mm |
