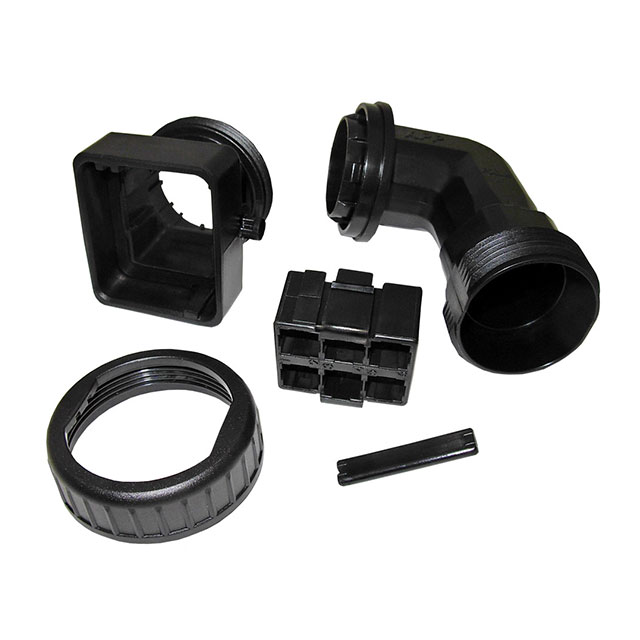

SK8-B53B06
ObsoleteAnderson Power Products, Inc.
CONN PLUG 6POS IN-LINE CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SK8-B53B06
ObsoleteAnderson Power Products, Inc.
CONN PLUG 6POS IN-LINE CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SK8-B53B06 |
|---|---|
| Connector Type | Non-Gendered |
| Current Rating (Amps) | 45 A |
| Fastening Type | Spring Retention |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Termination | Crimp |
| Voltage Rating | 600 V |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SK8-B53B06
6 Position Non-Gendered Connector Crimp Free Hanging (In-Line)
Documents
Technical documentation and resources
