CSD16126
ActiveHoffman Enclosures, Inc.
BOX STEEL GRAY 15.98"L X 12.01"W
CSD16126
ActiveHoffman Enclosures, Inc.
BOX STEEL GRAY 15.98"L X 12.01"W
Description
General part information
CSD16126

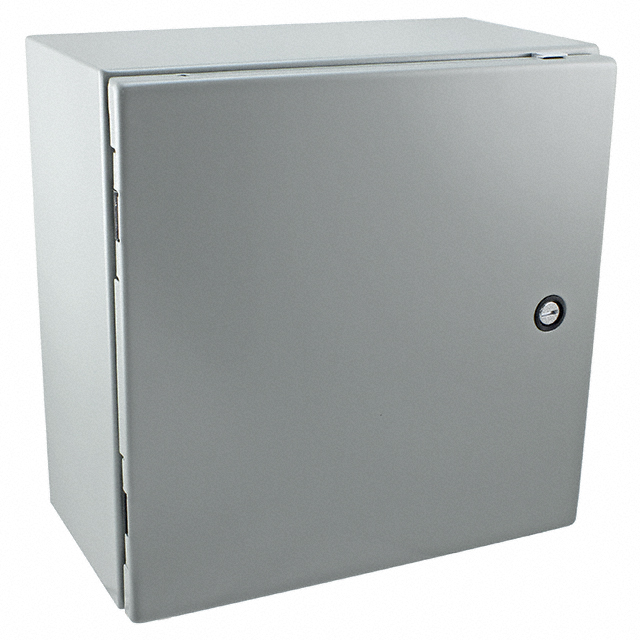

Box Metal, Steel Gray Hinged Door, Lid 15.984" L x 12.008" W (406.00mm x 305.00mm) X 5.984" (152.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CSD16126 |
|---|---|
| Area (L x W) | 192 in² |
| Color | Gray |
| Container Type | Box |
| Design | Lid, Hinged Door |
| Features | Wall Mount, Sealing Gasket |
| Height | 5.984 in |
| Material | Metal, Steel |
| Ratings | 13, 12, NEMA 4, UL-508A, IP66 |
| Size / Dimension Length | 15.984 in |
| Size / Dimension Width | 12.008 in |
| Thickness | 18 Gauge |
| Thickness | 18 Gauge |
| Weight | 16 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
