S472M39Z5UN6TL6R
ActiveVishay Dale
CAP CER 4700PF 1KV Z5U RADIAL
S472M39Z5UN6TL6R
ActiveVishay Dale
CAP CER 4700PF 1KV Z5U RADIAL
Description
General part information
S472M39Z5UN6TL6R

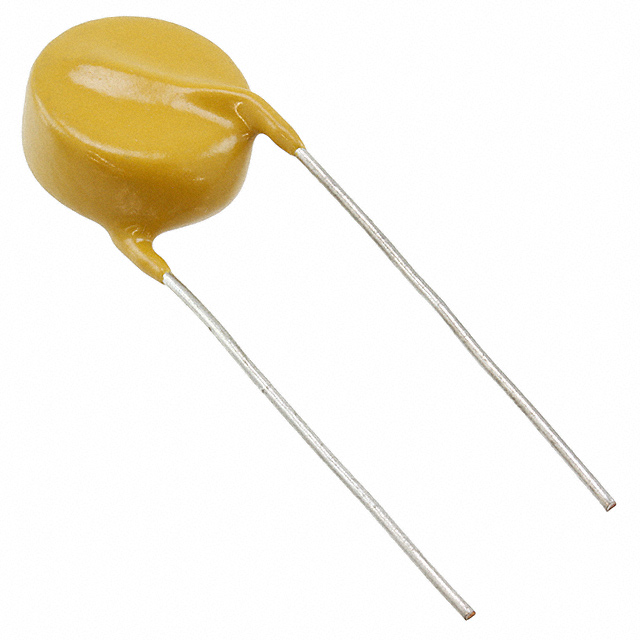

4700 pF ±20% 1000V (1kV) Ceramic Capacitor Z5U Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | S472M39Z5UN6TL6R |
|---|---|
| Applications | General Purpose |
| Capacitance | 4700 pF |
| Height - Seated (Max) | 0.551 in |
| Lead Spacing | 0.252 in |
| Lead Style | Straight |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.394 in |
| Temperature Coefficient | Z5U |
| Tolerance | 20 % |
| Voltage - Rated | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
