EP12RD1ABE
ObsoleteLITTELFUSE
SWITCH PUSH SPDT 0.4VA 20V
EP12RD1ABE
ObsoleteLITTELFUSE
SWITCH PUSH SPDT 0.4VA 20V
Description
General part information
EP12RD1ABE

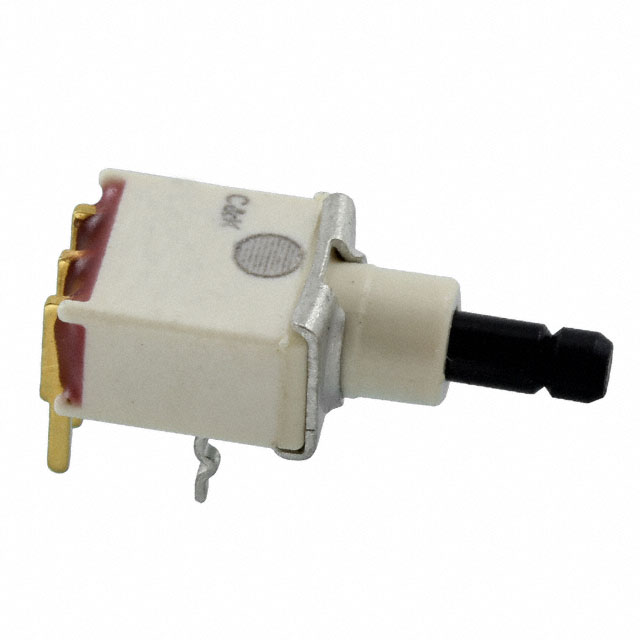

Pushbutton Switch SPDT Standard Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | EP12RD1ABE |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating | 0.4 VA |
| Electrical Life (Cycles) | 30000 Cycles |
| Features | Epoxy Sealed Terminals |
| Ingress Protection Description | Dust Protected, Waterproof |
| Ingress Protection IP Rating | IP57 |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
