ABJ1410609

Obsolete

Panasonic Electric Works

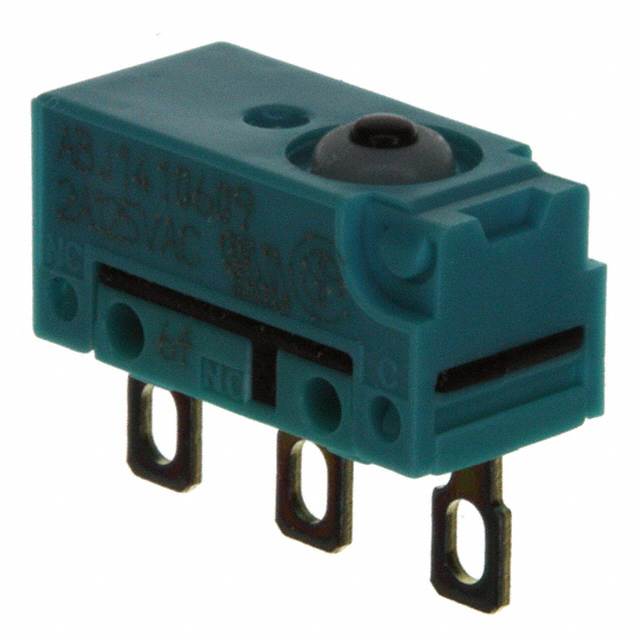

SWITCH SNAP ACTION SPDT 2A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

ABJ1410609

Obsolete

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 2A 125V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ABJ1410609	ABJ141 Series

Actuator Type	Round (Pin Plunger)	Simulated Roller, Lever, Round (Pin Plunger), Lever, Straight, Roller
Circuit	SPDT	SPDT
Current Rating (Amps)	2 A	2 - 100 mA
Differential Travel	0.13 mm	0.13 - 0.5 mm
Differential Travel	0.005 in	0.005 - 0.02 in
Electrical Life	6000 Cycles	6000 - 100000 Cycles
Ingress Protection	IP50	IP50
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	200 gf	40 - 200 gf
Operating Position	0.217 in	0.217 - 0.516 in
Operating Position	5.5 mm	5.5 - 13.1 mm
Operating Position	-	9.8 mm
Operating Position	-	0.386 in
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.25 mm	0.25 - 0.5 mm
Overtravel	0.01 in	0.01 - 0.02 in
Pretravel	0.024 in	0.024 - 0.12 in
Pretravel	0.6 mm	0.6 - 3 mm
Release Force	25 gf	3.059 - 25 gf
Switch Function	On-Mom	On-Mom
Termination Style	Solder Lug	Solder Lug
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	30 V	30 V

ABJ141 Series

SWITCH SNAP ACTION SPDT 1A 125V

Part	Termination Style	Circuit	Operating Force	Pretravel	Pretravel	Mechanical Life	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Differential Travel	Differential Travel	Operating Position [x]	Operating Position [x]	Overtravel	Overtravel	Voltage Rating - DC	Release Force	Switch Function	Ingress Protection	Electrical Life	Mounting Type	Voltage Rating - AC	Operating Position	Operating Position	Current Rating (Amps)
Panasonic Electric Works ABJ1414409	Solder Lug	SPDT	40 gf	0.12 in	3 mm	1000000 Cycles	Lever, Simulated Roller	85 °C	-40 °C	0.5 mm	0.02 in	9.8 mm	0.386 in	0.02 in	0.5 mm	30 V	3.059 gf	On-Mom	IP50	6000 Cycles	Chassis Mount	125 V
Panasonic Electric Works ABJ141061	Solder Lug	SPDT	200 gf	0.024 in	0.6 mm	1000000 Cycles	Round (Pin Plunger)	85 °C	-40 °C	0.13 mm	0.005 in			0.01 in	0.25 mm	30 V	25 gf	On-Mom	IP50	100000 Cycles	Chassis Mount	125 V	0.217 in	5.5 mm	100 mA
Panasonic Electric Works ABJ1412419	Solder Lug	SPDT	40 gf	0.12 in	3 mm	1000000 Cycles	Lever, Straight	85 °C	-40 °C	0.5 mm	0.02 in			0.02 in	0.5 mm	30 V	3.059 gf	On-Mom	IP50	6000 Cycles	Chassis Mount	125 V	0.268 "	6.8 mm	100 mA
Panasonic Electric Works ABJ1412409	Solder Lug	SPDT	40 gf	0.12 in	3 mm	1000000 Cycles	Lever, Straight	85 °C	-40 °C	0.5 mm	0.02 in			0.02 in	0.5 mm	30 V	3.059 gf	On-Mom	IP50	6000 Cycles	Chassis Mount	125 V	0.268 "	6.8 mm
Panasonic Electric Works ABJ141240	Solder Lug	SPDT	40 gf	0.12 in	3 mm	1000000 Cycles	Lever, Straight	85 °C	-40 °C	0.5 mm	0.02 in			0.02 in	0.5 mm	30 V	3.059 gf	On-Mom	IP50	30000 Cycles	Chassis Mount	125 V	0.268 "	6.8 mm
Panasonic Electric Works ABJ1414419	Solder Lug	SPDT	40 gf	0.12 in	3 mm	1000000 Cycles	Lever, Simulated Roller	85 °C	-40 °C	0.5 mm	0.02 in	9.8 mm	0.386 in	0.02 in	0.5 mm	30 V	3.059 gf	On-Mom	IP50	6000 Cycles	Chassis Mount	125 V			100 mA
Panasonic Electric Works ABJ1410619	Solder Lug	SPDT	200 gf	0.024 in	0.6 mm	1000000 Cycles	Round (Pin Plunger)	85 °C	-40 °C	0.13 mm	0.005 in			0.01 in	0.25 mm	30 V	25 gf	On-Mom	IP50	6000 Cycles	Chassis Mount	125 V	0.217 in	5.5 mm	100 mA
Panasonic Electric Works ABJ141241	Solder Lug	SPDT	40 gf	0.12 in	3 mm	1000000 Cycles	Lever, Straight	85 °C	-40 °C	0.5 mm	0.02 in			0.02 in	0.5 mm	30 V	3.059 gf	On-Mom	IP50	100000 Cycles	Chassis Mount	125 V	0.268 "	6.8 mm	100 mA
Panasonic Electric Works ABJ141460	Solder Lug	SPDT	65 gf	0.12 in	3 mm	1000000 Cycles	Lever, Simulated Roller	85 °C	-40 °C	0.5 mm	0.02 in	9.8 mm	0.386 in	0.02 in	0.5 mm	30 V	5.099 gf	On-Mom	IP50	30000 Cycles	Chassis Mount	125 V			2 A
Panasonic Electric Works ABJ141441	Solder Lug	SPDT	40 gf	0.12 in	3 mm	1000000 Cycles	Lever, Simulated Roller	85 °C	-40 °C	0.5 mm	0.02 in	9.8 mm	0.386 in	0.02 in	0.5 mm	30 V	3.059 gf	On-Mom	IP50	100000 Cycles	Chassis Mount	125 V			100 mA
