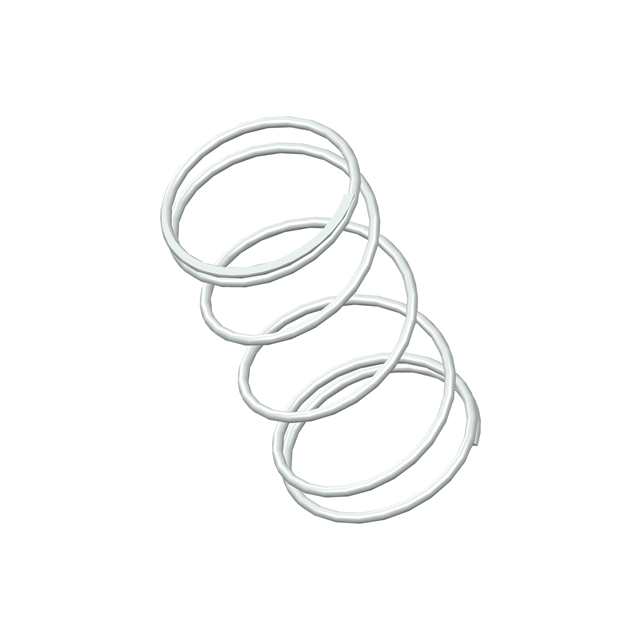

S-1532CS
ActiveCentury Spring Corp
COMP O=1.031,L= 2.00,W= .054
S-1532CS
ActiveCentury Spring Corp
COMP O=1.031,L= 2.00,W= .054
Description
General part information
S-1532CS
COMP O=1.031,L= 2.00,W= .054
Technical Specifications
Parameters and characteristics for this part
| Specification | S-1532CS |
|---|---|
| Diameter - Inside | 0.923 in |
| Diameter - Outside | 1.031 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 2 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 2.8 lbs/in |
| Type | Compression |
| Wire Diameter | 0.054 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
