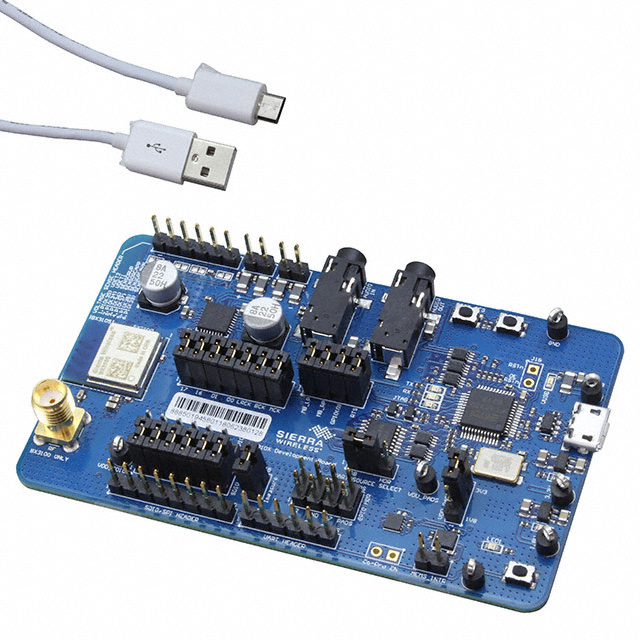

BX3105 DEV KIT_6001182

Obsolete

Sierra Wireless

DEV KIT BX3105

Search across all available documentation for this part.

Obsolete

Sierra Wireless

DEV KIT BX3105

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 74.11

General part information

BX - AirPrime® BX3105 Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE) 2.4GHz Evaluation Board

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BX3105 DEV KIT_6001182	BX3105 Series

Antenna Type	-	Integrated, Trace
Current - Receiving	-	85 mA
Current - Transmitting	-	224 mA
Data Rate	-	150 Mbps
For Use With/Related Products	BX3105	BX3105
Frequency	2.4 GHz	2.4 GHz
Frequency	-	2.4 GHz
Frequency	-	2.485 GHz
Modulation	-	DSSS, CCK, OFDM
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	Module
Power - Output	-	18 dBm
Protocol	-	802.11b/g/n, Bluetooth 4.2
RF Family/Standard	-	WiFi, Bluetooth
Sensitivity	-	-97.5 dBm
Serial Interfaces	-	UART, I2S, I2C, SPI, PWM
Supplied Contents	Board(s)	Board(s)
Type	802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver	802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver
Voltage - Supply	-	2.3 V
Voltage - Supply	-	3.6 V

RF TXRX MOD BT WIFI TH SMD

Part	Serial Interfaces	Sensitivity	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Modulation	Current - Receiving	Power - Output	Data Rate	Protocol	Mounting Type	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]	Frequency [Min]	Frequency [Max]	Antenna Type	Current - Transmitting	Supplied Contents	For Use With/Related Products	Type	Frequency
Sierra Wireless BX3105_1103841	I2C, I2S, PWM, SPI, UART	-97.5 dBm	Module	2.3 V	3.6 V	CCK, DSSS, OFDM	85 mA	18 dBm	150 Mbps	802.11b/g/n, Bluetooth 4.2	Surface Mount	Bluetooth, WiFi	85 °C	-40 °C	2.4 GHz	2.485 GHz	Integrated, Trace	224 mA
Sierra Wireless BX3105_1104114	I2C, I2S, PWM, SPI, UART	-97.5 dBm	Module	2.3 V	3.6 V	CCK, DSSS, OFDM	85 mA	18 dBm	150 Mbps	802.11b/g/n, Bluetooth 4.2	Surface Mount	Bluetooth, WiFi	85 °C	-40 °C	2.4 GHz	2.485 GHz	Integrated, Trace	224 mA
Sierra Wireless BX3105 DEV KIT_6001182																			Board(s)	BX3105	802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver	2.4 GHz
