Description
General part information

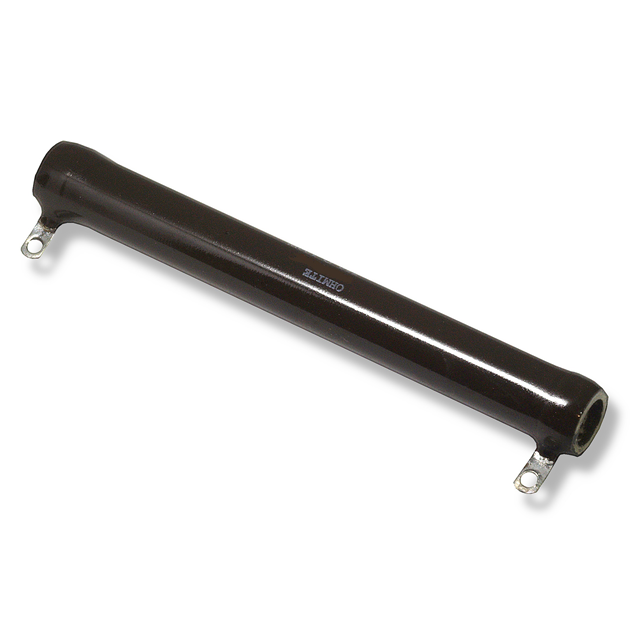

L12J25KE
25 kOhms ±5% 12W Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | L12J25KE |
|---|---|
| Coating | Vitreous Enamel Coated |
| Features | Flame Retardant Coating, Safety |
| Housing Type | Vitreous Enamel Coated |
| Lead Style | Solder Lugs |
| Mounting Feature | Brackets (not included) |
| Package / Case | Tubular, Radial |
| Power (Watts) | 12 W |
| Resistance | 25 kOhm |
| Size / Dimension Diameter | 0.313 in |
| Size / Dimension Length | 1.748 in |
| Temperature Coefficient | 260 ppm/°C |
| Temperature Coefficient (Highest) | 260 ppm/°C |
| Temperature Coefficient (Lowest) | -260 ppm/°C |
| Tolerance | 5 % |
