MN12SA2A13
ActiveNKK Switches
SWITCH TOGGLE
MN12SA2A13
ActiveNKK Switches
SWITCH TOGGLE
Description
General part information

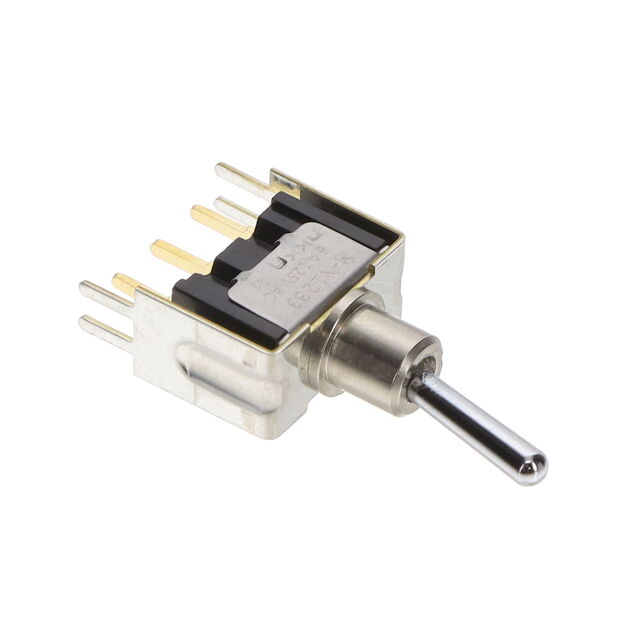

MN12SA2A13
Toggle Switch SPDT Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | MN12SA2A13 |
|---|---|
| Actuator Length | 12.27 mm |
| Actuator Material | Chrome Plated, Brass |
| Actuator Type | Standard Round |
| Bushing Thread | Unthreaded |
| Circuit | SPDT |
| Current Rating | 4 A, 6 A |
| Electrical Life (Cycles) | 25000 |
| Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
