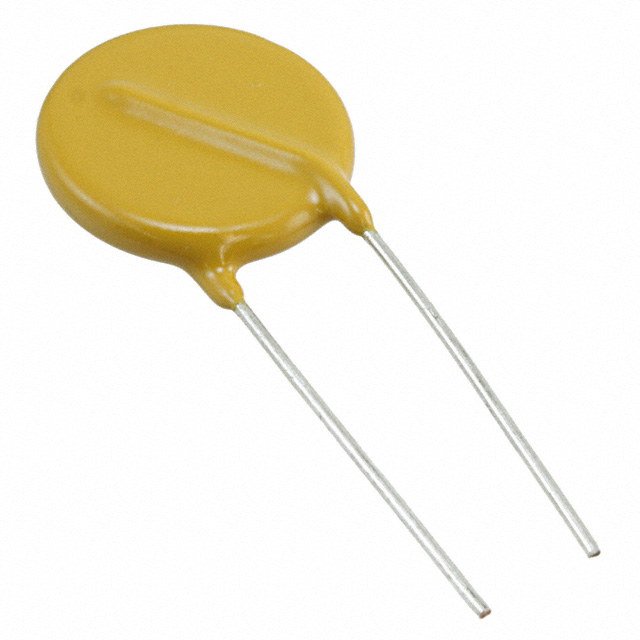

VDRH20X320BSE
ActiveVishay Dale
VARISTOR 510V 10KA DISC 22.50MM
VDRH20X320BSE
ActiveVishay Dale
VARISTOR 510V 10KA DISC 22.50MM
Description
General part information
VDRH20X320BSE
510 V 10 kA Varistor 1 Circuit Through Hole Disc 22.50mm
Technical Specifications
Parameters and characteristics for this part
| Specification | VDRH20X320BSE |
|---|---|
| Capacitance | 750 pF |
| Current - Surge | 10000 A |
| Energy | 382 J |
| Maximum AC Volts | 320 V |
| Maximum DC Voltage | 420 V |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package Diameter | 22.5 mm |
| Package Name | Disc |
| Varistor Voltage (Max) | 561 V |
| Varistor Voltage (Min) | 459 V |
| Varistor Voltage (Typ) | 510 V |
