FMC1738316-120
ActiveFairview Microwave
CBL ASSY MCXPLUG-BNCJACK 120
FMC1738316-120
ActiveFairview Microwave
CBL ASSY MCXPLUG-BNCJACK 120
Description
General part information
FMC1738316-120

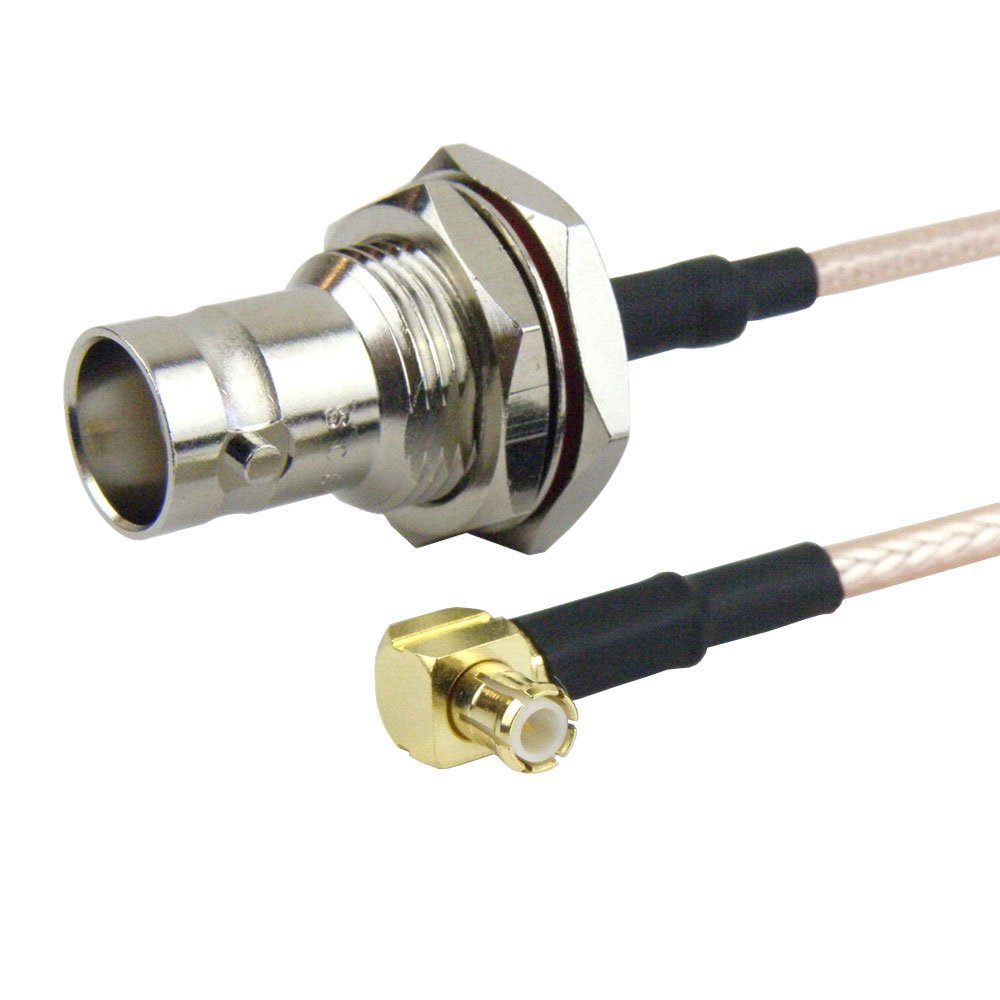

Cable Assembly Coaxial BNC to MCX RG-316 120.0" (3.0m) 10.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC1738316-120 |
|---|---|
| 1st Connector | MCX Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | BNC Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 |
| Color | Tan |
| Connector Impedance | 50 Ohms |
| Length | 120 in |
| Overall Impedance | 50 Ohms |
| Style | MCX, BNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
