6XV18755UH20

Active

Siemens

CBL ASSY SMA-NTYPE PLUG-PLG 6.6'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6XV18755UH20

Active

Siemens

CBL ASSY SMA-NTYPE PLUG-PLG 6.6'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 100.44

Description

General part information

6XV18755 Series

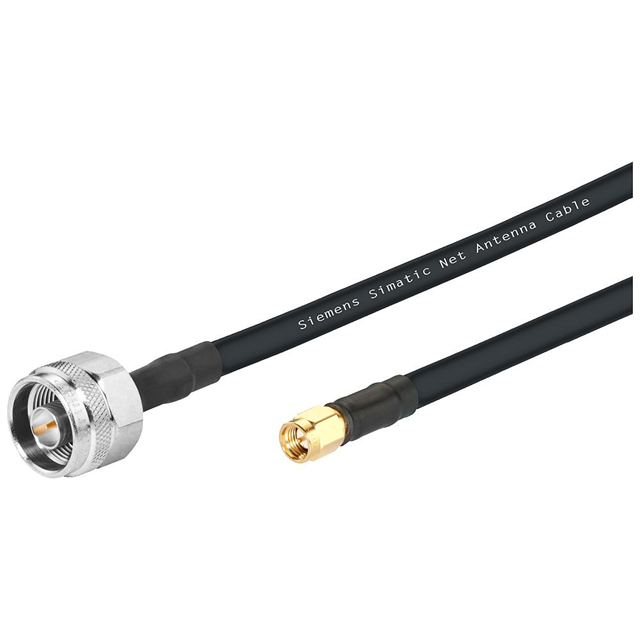

Cable Assembly Coaxial SMA to N-Type 78.7" (2.0m) 6.6'

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6XV18755UH20	6XV18755 Series

1st Connector	SMA Plug	QMA Plug, SMA Plug, RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Male	Male, Female
2nd Connector	N-Type Plug	N-Type Jack, N-Type Plug, SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Female, Male
Color	Black	Black, Aqua
Frequency - Max [Max]	6000 MHz	6 - 6000 MHz
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof, IP68 - Dust Tight, Waterproof
Length	6.6 ft	3.3 - 16.4 ft
Length	78.7 in	39.4 - 196.9 in
Length	2 m	1 - 5 m
Length	-	300 mm
Length	-	11.811 in
Operating Temperature [Max]	100 °C	80 - 100 °C
Operating Temperature [Min]	-30 ░C	-40 - -30 ░C
Overall Impedance	50 Ohms	50 Ohms
Style	SMA to N-Type	N-Type to QMA, SMA to N-Type, RP-SMA to SMA, N-Type to N-Type, N-Type to RP-SMA

6XV18755 Series

CBL ASSY NTYPE-QMA PLG-JACK 3.3'

Part	2nd Connector	Operating Temperature [Max]	Operating Temperature [Min]	1st Connector	1st Connector Mounting Type	2nd Contact Gender	Frequency - Max [Max]	1st Contact Gender	Overall Impedance	Ingress Protection	Length	Length	Length	2nd Connector Mounting Type	Color	Style	Length [x]	Length [x]
Siemens 6XV18755VH10	N-Type Jack	100 °C	-30 ░C	QMA Plug	Free Hanging (In-Line)	Female	6000 MHz	Male	50 Ohms	IP67 - Dust Tight, Waterproof	1 m	3.3 ft	39.4 in	Free Hanging (In-Line)	Black	N-Type to QMA
Siemens 6XV18755JH10	N-Type Jack	80 C	-40 °C	QMA Plug	Free Hanging (In-Line)	Female	6000 MHz	Male	50 Ohms	IP67 - Dust Tight, Waterproof	1 m	3.3 ft	39.4 in	Free Hanging (In-Line)	Aqua	N-Type to QMA
Siemens 6XV18755UH20	N-Type Plug	100 °C	-30 ░C	SMA Plug	Free Hanging (In-Line)	Male	6000 MHz	Male	50 Ohms	IP67 - Dust Tight, Waterproof	2 m	6.6 ft	78.7 in	Free Hanging (In-Line)	Black	SMA to N-Type
Siemens 6XV18755DE30	SMA Plug	80 C	-40 °C	RP-SMA Plug	Free Hanging (In-Line)	Female	6000 MHz	Female	50 Ohms	IP68 - Dust Tight, Waterproof				Free Hanging (In-Line)	Aqua	RP-SMA to SMA	300 mm	11.811 in
Siemens 6XV18755AH20	N-Type Plug	80 C	-40 °C		Free Hanging (In-Line)	Male	6000 MHz	Male	50 Ohms	IP68 - Dust Tight, Waterproof	2 m	6.6 ft	78.7 in	Free Hanging (In-Line)	Aqua	N-Type to N-Type
Siemens 6XV18755CN10	N-Type Plug	80 C	-40 °C	RP-SMA Plug	Free Hanging (In-Line)	Male	6000 MHz	Male	50 Ohms	IP68 - Dust Tight, Waterproof				Free Hanging (In-Line)	Aqua	N-Type to RP-SMA
Siemens 6XV18755CH10	N-Type Plug	80 C	-40 °C	RP-SMA Plug	Free Hanging (In-Line)	Male	6000 MHz	Male	50 Ohms	IP68 - Dust Tight, Waterproof	1 m	3.3 ft	39.4 in	Free Hanging (In-Line)	Aqua	N-Type to RP-SMA
Siemens 6XV18755AH50	N-Type Plug	80 C	-40 °C		Free Hanging (In-Line)	Male	6 MHz	Male		IP68 - Dust Tight, Waterproof	5 m	16.4 ft	196.9 in	Free Hanging (In-Line)	Aqua	N-Type to N-Type
Siemens 6XV18755AN10	N-Type Plug	80 C	-40 °C		Free Hanging (In-Line)	Male	6000 MHz	Male	50 Ohms	IP68 - Dust Tight, Waterproof				Free Hanging (In-Line)	Aqua	N-Type to N-Type
Siemens 6XV18755DH20	SMA Plug	80 C	-40 °C	RP-SMA Plug	Free Hanging (In-Line)	Male	6000 MHz	Female	50 Ohms	IP68 - Dust Tight, Waterproof	2 m	6.6 ft	78.7 in	Free Hanging (In-Line)	Aqua	RP-SMA to SMA
