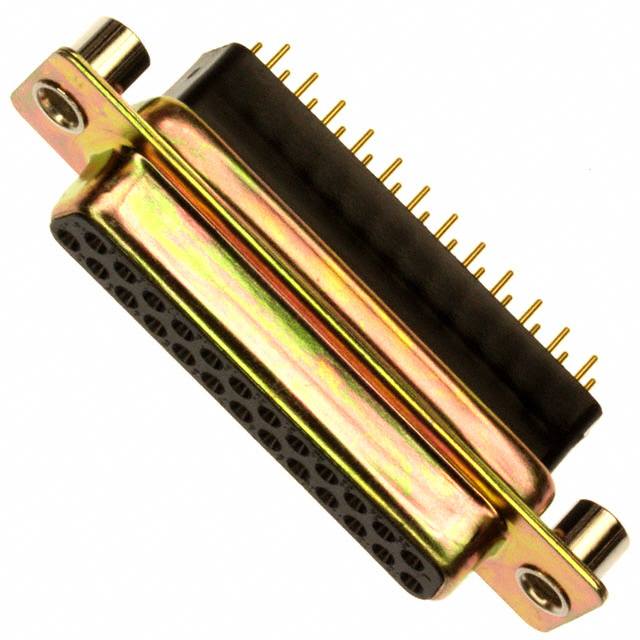

172-025-281L021

Obsolete

MH Connectors

CONN D-SUB RCPT 25P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

172-025-281L021

Obsolete

MH Connectors

CONN D-SUB RCPT 25P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	172-025-281L021

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-50 °C
Shell Material, Finish	Steel, Yellow Chromate Plated
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

172-025 Series

Part	Number of Rows	Shell Material, Finish	Flange Feature	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Style	Dielectric Material	Material Flammability Rating	Contact Finish	Contact Type	Contact Finish Thickness	Current Rating (Amps)	Mounting Type	Termination	Connector Type	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Features
MH Connectors 172-025-181-011	2	Steel Yellow Chromate Plated	4-40 Board Side	B DB	3	D-Sub	Polybutylene Terephthalate (PBT)	UL94 V-0	Gold	Signal	Flash	5 A	Panel Mount Through Hole	Solder	Male Pins Plug
MH Connectors 172-025-202R011	2		Cable Side	B DB	3	D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Gold	Signal	Flash	5 A			Receptacle Female Sockets	Brass	20 AWG	26 AWG	Beige
MH Connectors 172-025-241-001	2	Steel Yellow Chromate Plated	Housing/Shell (Unthreaded)	B DB	3	D-Sub	Polybutylene Terephthalate (PBT)	UL94 V-0	Gold	Signal	Flash	5 A	Panel Mount Through Hole	Wire Wrap	Receptacle Female Sockets				Beige
MH Connectors 172-025-111-001	2	Steel Yellow Chromate Plated	Housing/Shell (Unthreaded)	B DB	3	D-Sub	Polybutylene Terephthalate (PBT)	UL94 V-0	Gold	Signal	Flash	5 A	Panel Mount Through Hole	Solder	Male Pins Plug				Black
MH Connectors 172-025-202R001	2		Housing/Shell (Unthreaded)	B DB	3	D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Gold	Signal	Flash	5 A			Receptacle Female Sockets	Brass	20 AWG	26 AWG	Beige
MH Connectors 172-025-181L011	2	Steel Yellow Chromate Plated	4-40 Board Side	B DB	3	D-Sub	Polybutylene Terephthalate (PBT)	UL94 V-0	Gold	Signal	Flash	5 A	Panel Mount Through Hole	Solder	Male Pins Plug					-50 °C	125 °C
MH Connectors 172-025-202R021	2		Cable Side	B DB	3	D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Gold	Signal	Flash	5 A			Receptacle Female Sockets	Brass	20 AWG	26 AWG	Beige
MH Connectors 172-025-181L021	2	Steel Yellow Chromate Plated	4-40 Board Side	B DB	3	D-Sub	Polybutylene Terephthalate (PBT)	UL94 V-0	Gold	Signal	Flash	5 A	Panel Mount Through Hole	Solder	Male Pins Plug					-50 °C	125 °C
MH Connectors 172-025-201-001	2	Steel Yellow Chromate Plated	Housing/Shell (Unthreaded)	B DB	3	D-Sub	Polybutylene Terephthalate (PBT)	UL94 V-0	Gold	Signal	Flash	5 A			Receptacle Female Sockets		20 AWG	28 AWG
MH Connectors 172-025-183L031	2	Nickel Plated Steel	4-40	B DB	3	D-Sub	Polybutylene Terephthalate (PBT)	UL94 V-0	Gold	Signal	Flash	5 A	Panel Mount Through Hole	Solder	Male Pins Plug					-50 °C	125 °C	Grounding Indents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

172-025 Series

25 Position D-Sub Receptacle, Female Sockets Connector
