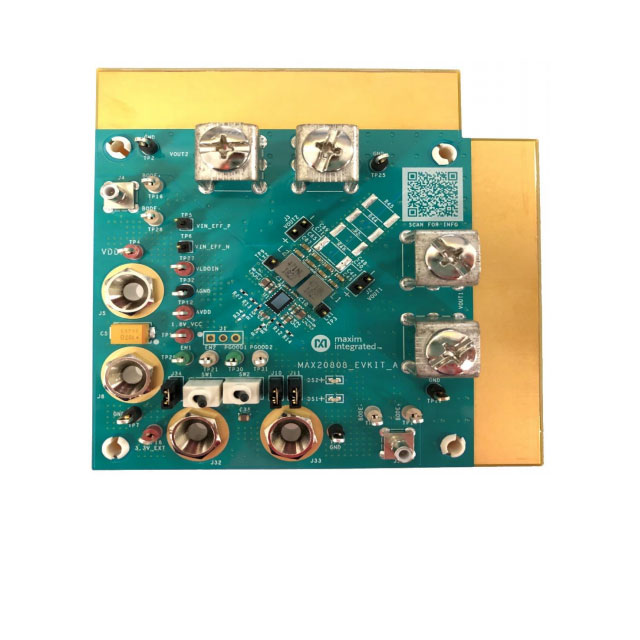

MAX20808EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR MAX20808
MAX20808EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR MAX20808
Description
General part information
MAX20808EVKIT#
MAX20808 - DC/DC, Step Down 2, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | MAX20808EVKIT# |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output (Max) | 4 A |
| Current - Output (Min) | 4 A |
| Main Purpose | DC/DC, Step Down |
| Non-Isolated Output Count | 2 count |
| Output Type | Non-Isolated |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Total Output Count | 2 |
| Utilized IC / Part | MAX20808 |
| Voltage - Input (Maximum) | 16 V |
| Voltage - Input (Minimum) | 2.7 V |
| Voltage - Output | 1 V, 1.8 V |
