Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BALFHB-WL-01D3 | BALFHB-WL-01D3 Series |
|---|---|---|
| - | - | |
| Frequency Range [Max] | 928 MHz | 928 MHz |
| Frequency Range [Min] | 862 MHz | 862 MHz |
| Insertion Loss (Max) [Max] | 1.6 dB | 1.6 dB |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-WFBGA, CSPBGA | 8-WFBGA, CSPBGA |
| Phase Difference | 0 ° | 0 ° |
| Return Loss (Min) [Min] | 14 dB | 14 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow | N/A | 5000 | $ 0.22 | |
| Digikey | Cut Tape (CT) | 1 | $ 0.88 | |
| 10 | $ 0.87 | |||
| 25 | $ 0.58 | |||
| 50 | $ 0.52 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.30 | |||
| Digi-Reel® | 1 | $ 0.88 | ||
| 10 | $ 0.87 | |||
| 25 | $ 0.58 | |||
| 50 | $ 0.52 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.30 | |||
| Tape & Reel (TR) | 5000 | $ 0.27 | ||
| 10000 | $ 0.26 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.60 | |
| 10 | $ 0.56 | |||
| 25 | $ 0.55 | |||
| 50 | $ 0.54 | |||
| 100 | $ 0.52 | |||
| 250 | $ 0.51 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.48 | |||
BALFHB-WL-01D3 Series
Integrated filter matched balun to BGA STM32WL in high power mode, 862-928 MHz, using 4 layer PCB
| Part | Package / Case | Mounting Type | Return Loss (Min) [Min] | Insertion Loss (Max) [Max] | Frequency Range [Max] | Frequency Range [Min] | Phase Difference |
|---|---|---|---|---|---|---|---|
STMicroelectronics BALFHB-WL-01D3 | |||||||
STMicroelectronics BALFHB-WL-01D3 | |||||||
STMicroelectronics BALFHB-WL-01D3 | 8-WFBGA, CSPBGA | Surface Mount | 14 dB | 1.6 dB | 928 MHz | 862 MHz | 0 ° |
STMicroelectronics BALFHB-WL-01D3 | |||||||
STMicroelectronics BALFHB-WL-01D3 |
Description
General part information
BALFHB-WL-01D3 Series

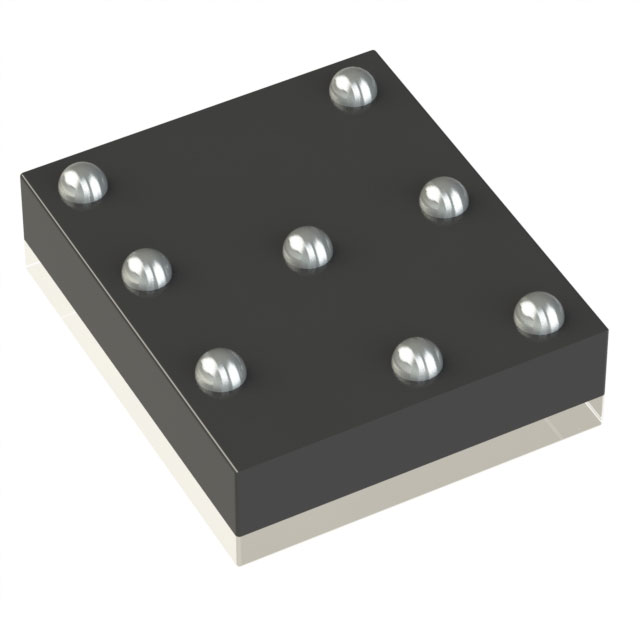

STMicroelectronics BALFHB-WL-01D3 is an ultra-miniature balun. This device integrates a matching network, balun, and harmonics filter. Matching impedance has been customized for the STM32WL sub-GHz wireless microcontrollers.
It is using STMicroelectronics IPD technology on a nonconductive glass substrate, which optimizes RF performances.
