1-1379913-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 20POS 2.54MM
1-1379913-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 20POS 2.54MM
Description
General part information
1-1379913-1

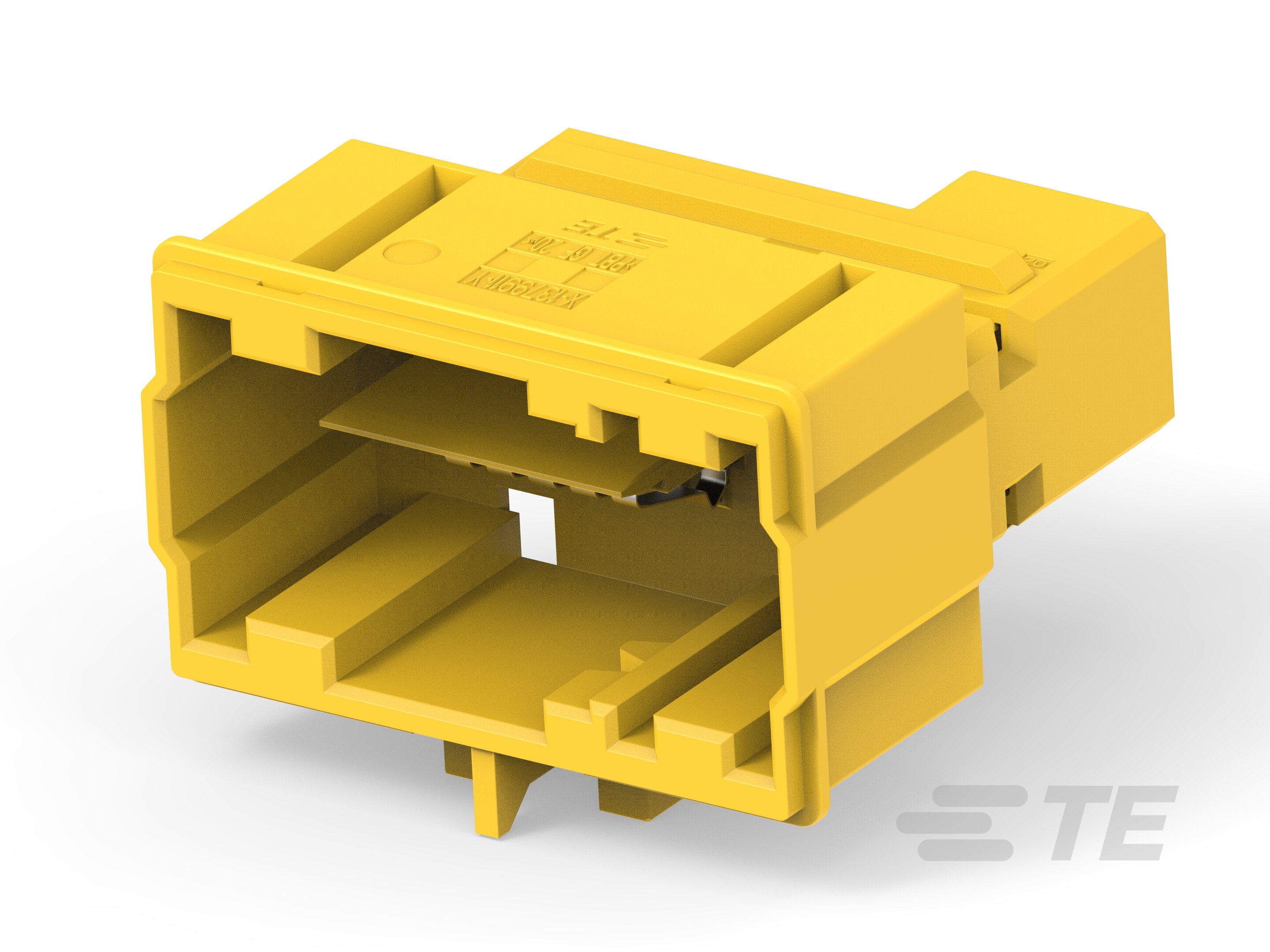

20 Position Housing, Housing for Male Terminals, Wire-to-Wire, 2.54 mm / 5.08 mm [.1 in / .2 in] Centerline, Yellow, Wire & Cable, Power & Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1379913-1 |
|---|---|
| Color | Yellow |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.1 in |
| Row Spacing | 0.276 in |
