F981C106MSAAS1
ObsoleteKYOCERA AVX
CAP TANT 10UF 20% 16V 0805
F981C106MSAAS1
ObsoleteKYOCERA AVX
CAP TANT 10UF 20% 16V 0805
Description
General part information
F981C106MSAAS1

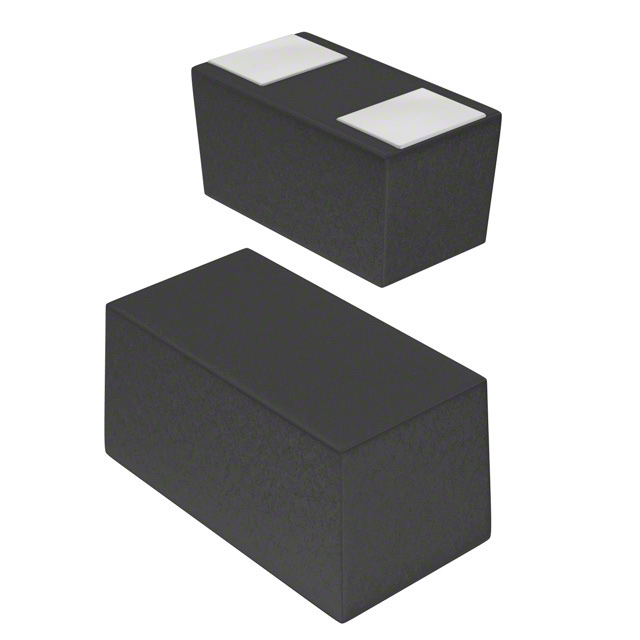

10 µF Molded Tantalum Capacitors 16 V 0805 (2012 Metric) 4.5Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | F981C106MSAAS1 |
|---|---|
| Capacitance | 10 µF |
| ESR (Equivalent Series Resistance) | 4.5 Ohm |
| Features | Fail Safe with Built-in Fuse |
| Height - Seated (Max) | 0.035 in |
| Lifetime | 1000 Hrs |
| Manufacturer Size Code | S |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 16 V |
