11807 RD005

Active

ALPHA WIRE

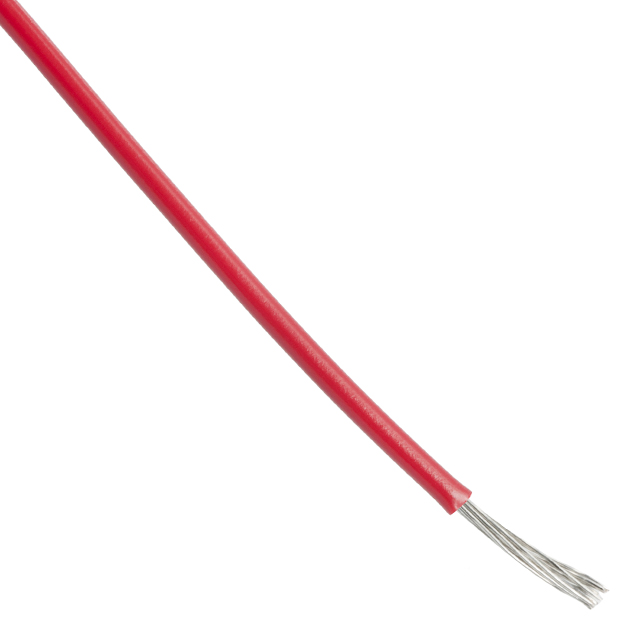

HOOK-UP STRND 18AWG RED 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Hook-Up Wire

11807 RD005

Active

ALPHA WIRE

HOOK-UP STRND 18AWG RED 100'

Deep-Dive with AI

DocumentsDatasheet Hook-Up Wire

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	11807 RD005	11807 Series

Cable Type	Hook-Up	Hook-Up
Conductor Material	Copper, Silver Coated	Copper, Silver Coated
Conductor Strand [custom]	26 AWG	26 AWG
Conductor Strand [custom]	7	7
Jacket (Insulation) Diameter [diameter]	1.73 mm	1.73 mm
Jacket (Insulation) Diameter [diameter]	0.068 in	0.068 in
Jacket (Insulation) Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Jacket (Insulation) Thickness	0.25 mm	0.25 mm
Jacket (Insulation) Thickness	0.01 in	0.01 in
Jacket Color	Red	Black, Blue, Red, Violet, Yellow, Brown, Green, Orange
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-60 °C	-60 °C
Qualification	MIL-DTL-16878/4 Type E	MIL-DTL-16878/4 Type E
Voltage	600 V	600 V
Wire Gauge	18 AWG	18 AWG

11807 Series

HOOK-UP STRND 18AWG BLACK 100'

Part	Cable Type	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Voltage	Conductor Material	Qualification	Wire Gauge	Jacket (Insulation) Material	Length	Length
ALPHA WIRE 11807 BK005	Hook-Up	30.5 m	100 ft	1.73 mm	0.068 in	26 AWG	7	0.25 mm	0.01 in	200 °C	-60 °C	Black	600 V	Copper, Silver Coated	MIL-DTL-16878/4 Type E	18 AWG	Polytetrafluoroethylene (PTFE)
ALPHA WIRE 11807 BL001	Hook-Up			1.73 mm	0.068 in	26 AWG	7	0.25 mm	0.01 in	200 °C	-60 °C	Blue	600 V	Copper, Silver Coated	MIL-DTL-16878/4 Type E	18 AWG	Polytetrafluoroethylene (PTFE)	1000 ft	304.8 m
ALPHA WIRE 11807 RD005	Hook-Up	30.5 m	100 ft	1.73 mm	0.068 in	26 AWG	7	0.25 mm	0.01 in	200 °C	-60 °C	Red	600 V	Copper, Silver Coated	MIL-DTL-16878/4 Type E	18 AWG	Polytetrafluoroethylene (PTFE)
ALPHA WIRE 11807 VI001	Hook-Up			1.73 mm	0.068 in	26 AWG	7	0.25 mm	0.01 in	200 °C	-60 °C	Violet	600 V	Copper, Silver Coated	MIL-DTL-16878/4 Type E	18 AWG	Polytetrafluoroethylene (PTFE)	1000 ft	304.8 m
ALPHA WIRE 11807 YL005	Hook-Up	30.5 m	100 ft	1.73 mm	0.068 in	26 AWG	7	0.25 mm	0.01 in	200 °C	-60 °C	Yellow	600 V	Copper, Silver Coated	MIL-DTL-16878/4 Type E	18 AWG	Polytetrafluoroethylene (PTFE)
ALPHA WIRE 11807 BR001	Hook-Up			1.73 mm	0.068 in	26 AWG	7	0.25 mm	0.01 in	200 °C	-60 °C	Brown	600 V	Copper, Silver Coated	MIL-DTL-16878/4 Type E	18 AWG	Polytetrafluoroethylene (PTFE)	1000 ft	304.8 m
ALPHA WIRE 11807 GR005	Hook-Up	30.5 m	100 ft	1.73 mm	0.068 in	26 AWG	7	0.25 mm	0.01 in	200 °C	-60 °C	Green	600 V	Copper, Silver Coated	MIL-DTL-16878/4 Type E	18 AWG	Polytetrafluoroethylene (PTFE)
ALPHA WIRE 11807 RD001	Hook-Up			1.73 mm	0.068 in	26 AWG	7	0.25 mm	0.01 in	200 °C	-60 °C	Red	600 V	Copper, Silver Coated	MIL-DTL-16878/4 Type E	18 AWG	Polytetrafluoroethylene (PTFE)	1000 ft	304.8 m
ALPHA WIRE 11807 VI005	Hook-Up	30.5 m	100 ft	1.73 mm	0.068 in	26 AWG	7	0.25 mm	0.01 in	200 °C	-60 °C	Violet	600 V	Copper, Silver Coated	MIL-DTL-16878/4 Type E	18 AWG	Polytetrafluoroethylene (PTFE)
ALPHA WIRE 11807 BL005	Hook-Up	30.5 m	100 ft	1.73 mm	0.068 in	26 AWG	7	0.25 mm	0.01 in	200 °C	-60 °C	Blue	600 V	Copper, Silver Coated	MIL-DTL-16878/4 Type E	18 AWG	Polytetrafluoroethylene (PTFE)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

11807 Series

18 AWG Hook-Up Wire 7/26 Red 600V 100.0' (30.5m)
