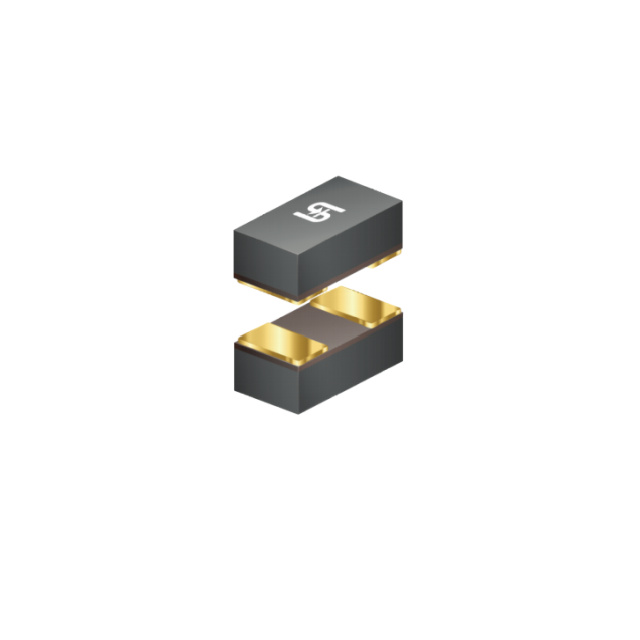

TESDU24V RGG
ActiveTaiwan Semiconductor Corporation
0603, 24V, 47W, 10PF, ESD PROTEC
TESDU24V RGG
ActiveTaiwan Semiconductor Corporation
0603, 24V, 47W, 10PF, ESD PROTEC
Description
General part information
TESDU24V RGG
51V Clamp 5A Ipp Tvs Diode Surface Mount 0603
Technical Specifications
Parameters and characteristics for this part
| Specification | TESDU24V RGG |
|---|---|
| Applications | USB |
| Bidirectional Channels | 1 |
| Capacitance | 10 pF |
| Current - Peak Pulse | 5 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 |
| Power - Peak Pulse | 47 W |
| Power Line Protection | No |
| Type | Zener |
| Voltage - Breakdown (Min) | 25 V |
| Voltage - Clamping (Max) | 51 V |
| Voltage - Reverse Standoff (Typ) | 24 V |
