SCPH73-151
ActiveSignal Transformer
FIXED IND 150UH 540MA 1.35OHM SM
SCPH73-151
ActiveSignal Transformer
FIXED IND 150UH 540MA 1.35OHM SM
Description
General part information

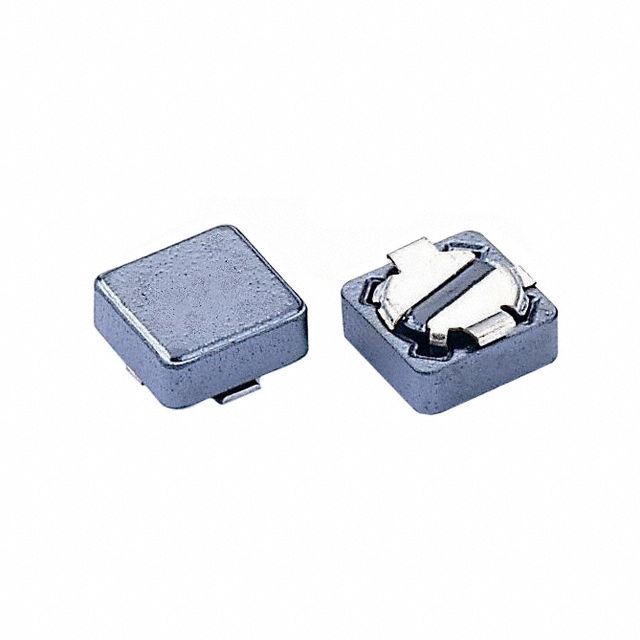

SCPH73-151
150 µH Shielded Inductor 540 mA 1.35Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SCPH73-151 |
|---|---|
| Current - Saturation (Isat) | 0.37 mA |
| Current Rating | 0.54 A |
| DC Resistance (DCR) (Max) | 1.35 Ohm |
| Height - Seated (Max) | 0.142 in |
| Inductance | 150 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.295 in |
| Size / Dimension Width | 0.295 in |
| Tolerance | 20 % |
