Description
General part information
P035-010

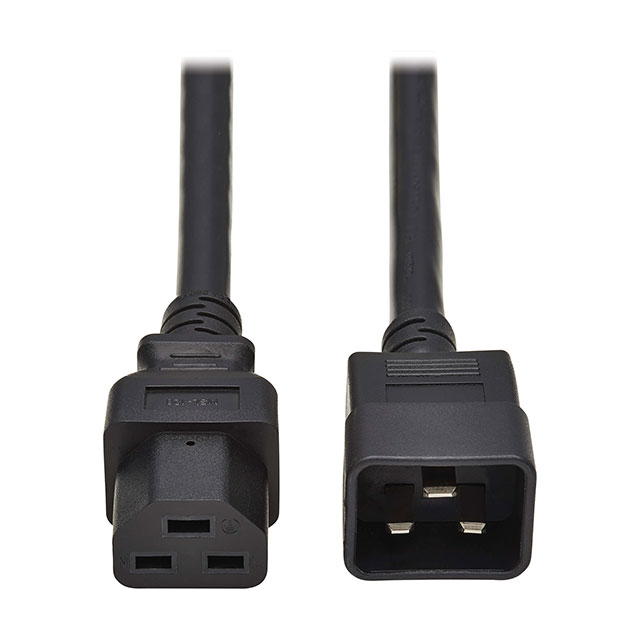

10.00' (3.05m) Power Cord Black IEC 320-C20 To IEC 320-C21 SJT
Technical Specifications
Parameters and characteristics for this part
| Specification | P035-010 |
|---|---|
| 1st Connector | IEC 320-C20 |
| 2nd Connector | IEC 320-C21 |
| Color | Black |
| Cord Type | SJT |
| Current Rating | 20 A |
| Length | 10 ft |
| Number of Conductors | 3 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Shielding | Unshielded |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating | 250 V |
| Wire Gauge | 12 AWG |
