B82144A2225J000
ActiveEPCOS - TDK Electronics
FIXED IND 2.2MH 120MA 9 OHM TH
Description
General part information
B82144A2225J000

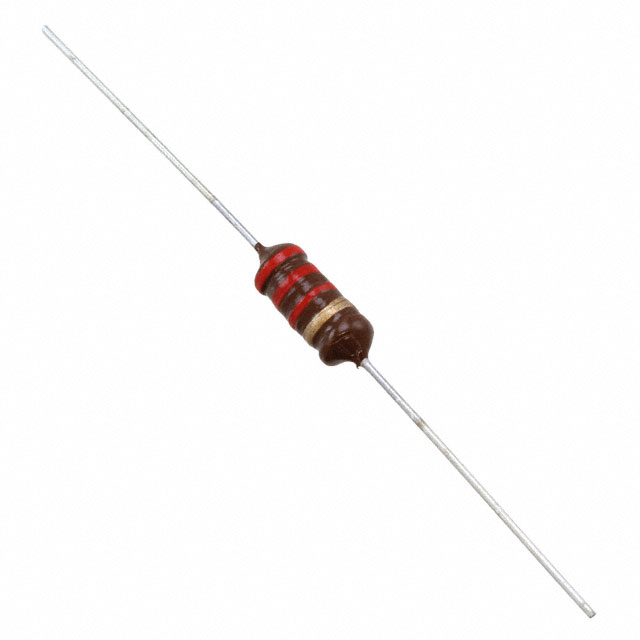

2.2 mH Unshielded Drum Core, Wirewound Inductor 120 mA 9Ohm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B82144A2225J000 |
|---|---|
| Current Rating | 120 mA |
| DC Resistance (DCR) (Max) | 9 Ohm |
| Frequency - Self Resonant | 800 kHz |
| Inductance | 2.2 mH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Q | 60 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.205 in |
| Size / Dimension Length | 0.472 in |
| Tolerance | 5 % |
| Type | Drum Core, Wirewound |
