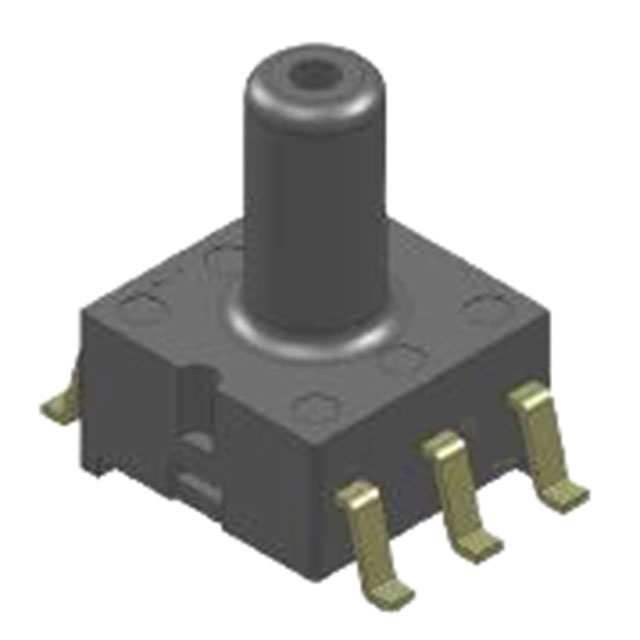

BLC-L01D-U2

Active

Amphenol All Sensors Corporation

SENSOR 0.04PSIG 0.12" .008V

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 0.04PSIG 0.12" .008V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor ±0.04PSI (±0.25kPa) Gauge Male - 0.12" (3mm) Tube 0 mV ~ 8 mV 6-SMD, Gull Wing, Top Port

Technical documentation and resources

Specification	BLC-L01D-U2	BLC-L01D Series

Accuracy	0.5 %	0.5 %
Applications	Board Mount	Board Mount
Maximum Pressure	25 kPa	25 kPa
Maximum Pressure	3.63 PSI	3.63 PSI
Mounting Type	Surface Mount	Surface Mount
Operating Pressure	0.04 PSI	0.04 PSI
Operating Pressure	0.25 kPa	0.25 kPa
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Output [Max]	8 mV	8 mV
Output [Min]	0 mV	0 mV
Output Type	Analog Voltage	Analog Voltage
Package / Case	6-SMD, Gull Wing, Top Port	6-SMD, Gull Wing, Top Port, 16-SOIC Module, Dual Top Ports
Port Size	Male - Tube	Male - Tube, Male, Tube, Dual
Port Size	3 mm, 0.12 "	0.12 - 3 mm
Port Size	-	0.12 "
Port Style	Barbless	Barbless, Barbed
Pressure Type	Gauge	Gauge, Differential
Termination Style	Gull Wing	Gull Wing
Voltage - Supply [Max]	1.8 V	1.8 V
Voltage - Supply [Min]	0.9 V	0.9 V

Part	Mounting Type	Port Style	Operating Temperature [Min]	Operating Temperature [Max]	Pressure Type	Applications	Maximum Pressure	Maximum Pressure	Operating Pressure	Operating Pressure	Termination Style	Package / Case	Output [Max]	Output [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Accuracy	Port Size	Port Size	Output Type	Port Size
Amphenol All Sensors Corporation BLC-L01D-U2	Surface Mount	Barbless	-25 °C	85 °C	Gauge	Board Mount	25 kPa	3.63 PSI	0.04 PSI	0.25 kPa	Gull Wing	6-SMD, Gull Wing, Top Port	8 mV	0 mV	1.8 V	0.9 V	0.5 %	Male - Tube	0.12 ", 3 mm	Analog Voltage
Amphenol All Sensors Corporation BLC-L01D-D4	Surface Mount	Barbed	-25 °C	85 °C	Differential	Board Mount	25 kPa	3.63 PSI	0.04 PSI	0.25 kPa	Gull Wing	16-SOIC Module, Dual Top Ports	8 mV	0 mV	1.8 V	0.9 V	0.5 %	Dual, Male, Tube	3 mm	Analog Voltage	0.12 "
