1446511
ActivePhoenix Contact
CABLE 5COND 22AWG GRAY 100M
1446511
ActivePhoenix Contact
CABLE 5COND 22AWG GRAY 100M
Description
General part information
1446511

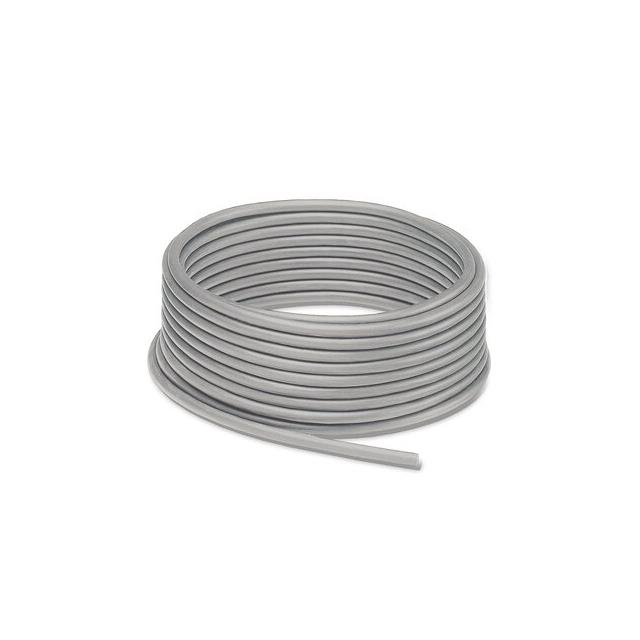

5 Conductor Multi-Conductor Cable Gray 22 AWG 328.1' (100.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1446511 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | Polyethersulfone (PES) |
| Conductor Material | Copper, Bare |
| Conductor Strand Count | 42 |
| Conductor Strand Gauge | 38 AWG |
| Jacket (Insulation) Diameter | 0.201 in |
| Jacket Color | Gray |
| Length | 328.1 ft |
| Number of Conductors | 5 |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
