PE4156
ActivePasternack

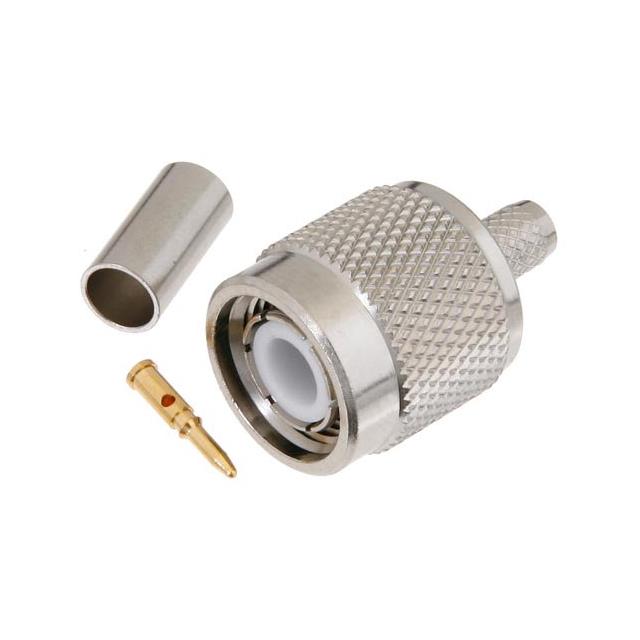

TNC MALE CONNECTOR CRIMP/SOLDER
PE4156
ActivePasternack
TNC MALE CONNECTOR CRIMP/SOLDER
Description
General part information
PE4156
TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE4156 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 141, RG-58, LMR-195, 303 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | TNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
