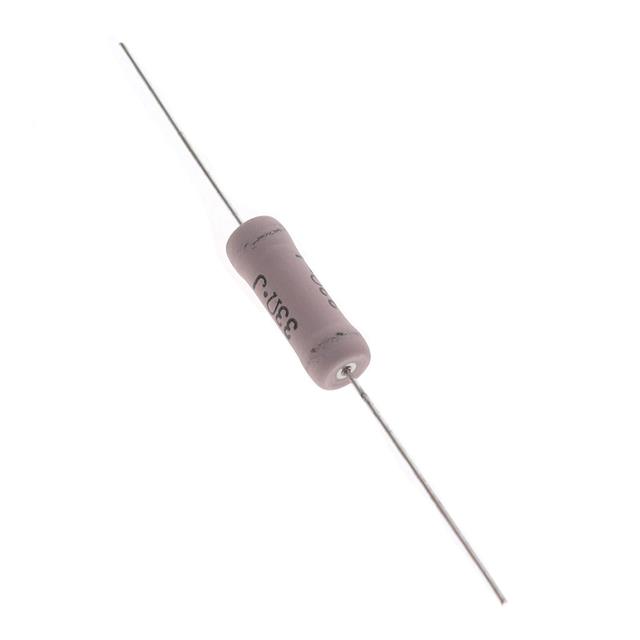

MOS5C330J
ActiveKOA Speer Electronics, Inc.
RES 33 OHM 5% 5W AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MOS5C330J
ActiveKOA Speer Electronics, Inc.
RES 33 OHM 5% 5W AXIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MOS5C330J |
|---|---|
| Composition | Metal Oxide Film |
| Features | Safety, Flame Retardant Coating |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 5 W |
| Resistance | 33 Ohms |
| Size / Dimension [diameter] | 0.354 in |
| Size / Dimension [diameter] | 9 mm |
| Size / Dimension [z] | 0.965 in |
| Size / Dimension [z] | 24.5 mm |
| Supplier Device Package | Axial |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.81 | |
| 10 | $ 0.66 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.29 | |||
| 5000 | $ 0.27 | |||
| 10000 | $ 0.27 | |||
Description
General part information
MOS5C330J
33 Ohms ±5% 5W Through Hole Resistor Axial Flame Retardant Coating, Safety Metal Oxide Film
