Wakefield Thermal Solutions

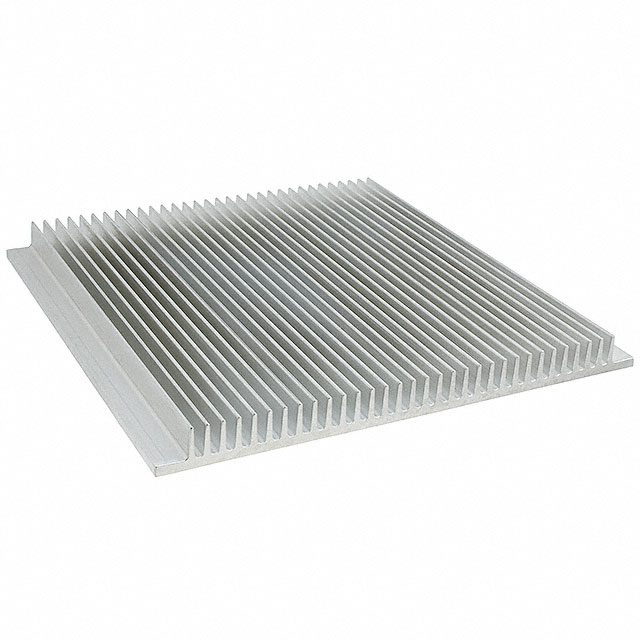

HEATSINK: EXTRUDED; GRILLED; UNIVERSAL; ALUMINIUM; L: 304.8MM; RAW

Find alt
122262

122262

Active
Wakefield Thermal Solutions

HEATSINK: EXTRUDED; GRILLED; UNIVERSAL; ALUMINIUM; L: 304.8MM; RAW

Find alt

Description

General part information

122262

Heat Sink Power Modules Aluminum Top Mount, Extrusion

Technical Specifications

Parameters and characteristics for this part

Specification122262
Attachment MethodAdhesive
Fin Height1 in
Length12 in
MaterialAluminum
Material FinishUnfinished
Package CooledPower Modules
ShapeFins, Rectangular
TypeTop Mount, Extrusion
Width12.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

wakefield.pdf
Datasheet
