83-798

Active

AMPHENOL RF

CONN UHF RCPT STR SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

83-798

Active

AMPHENOL RF

CONN UHF RCPT STR SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	83-798	- Series

Adapter Series	-	N to N, UHF to UHF
Adapter Type	-	Jack to Jack, Plug to Jack
Body Finish	Nickel	Gold, Nickel, White Bronze
Body Material	Zinc Die Cast	Brass, Zinc Die Cast, Zinc Alloy
Cable Group	-	302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393, Semi Rigid, RG-405, 58B, 55B, 58, 58A, RG-55, 58C, 142, 142B, 55A, 141A, 400, 141, 223, 9907, LMR-195, 303, Belden B7806A, RG-58
Cable Group	-	0.085 in
Cable Group	-	0.086 in
Center Contact Material	Brass	Brass, Beryllium Copper, Phosphor Bronze
Center Contact Plating	Silver	Gold, Silver, Nickel
Center Gender	-	Female to Female
Connector Style	UHF	SMB, N Type, BNC, 2.2/5, UHF, Mini
Connector Type	Receptacle, Female Socket	Male Pin, Receptacle, Plug, Female Socket, Jack
Contact Termination	Solder Cup	Solder Cup, Solder, Crimp
Conversion Type	-	Same Series
Convert From (Adapter End)	-	N Jack, Female Socket, N Plug, Male Pin, UHF Plug, Male Pin
Convert To (Adapter End)	-	Female Socket, N Jack, UHF Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polybutylene Terephthalate (PBT), Polyester, Polystyrene (PS), Phenol Formaldehyde (Phenolic)
Fastening Type	-	Snap-On, Bayonet Lock
Features	-	PL-259
Frequency - Max [Max]	300 MHz	2.5 - 6000 MHz
Housing Color	Silver	Gold, Silver, White
Impedance	Non-Constant	Non-Constant
Impedance	-	50 Ohms
Includes	-	1 Nut, 1 Connector, 1 Lockwasher, 1 Contact, 1 Washer, 1 Clamp, 2 Insulators, 1 Braid Clamp, 1 Gasket, 1 End Cap, 1 Insulator, 1 Ferrule, Clamp, 1 Braid
Ingress Protection	-	Weatherproof, IP67 - Dust Tight, Waterproof
Insertion Loss	-	0.15 - 0.2 dB
Mating Cycles	-	500
Mounting Feature	Flange	Bulkhead - Front Side Nut, Flange, Bulkhead - Rear Side Nut, Bulkhead
Mounting Type	-	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature	-	-65 - -55 ░C
Operating Temperature	-	85 - 165 °C
Shield Termination	Solder	Solder, Clamp, Crimp
Style	-	Straight, Right Angle
Voltage Rating	500 V	335 - 1500 V

- Series

CONN SMB RCPT STR 50 OHM SOLDER

Part	Center Contact Plating	Connector Type	Fastening Type	Body Finish	Frequency - Max [Max]	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Mating Cycles	Includes	Dielectric Material	Impedance	Center Contact Material	Connector Style	Contact Termination	Shield Termination	Housing Color	Mounting Feature	Voltage Rating	Insertion Loss	Cable Group	Mounting Type	Ingress Protection	Cable Group [Min]	Cable Group [Max]	Adapter Series	Center Gender	Adapter Type	Style	Convert To (Adapter End)	Convert From (Adapter End)	Conversion Type	Impedance
AMPHENOL RF 027-3	Gold	Male Pin, Receptacle	Snap-On	Gold	6000 MHz	1	-65 ░C	165 °C	Brass	500	1 Connector, 1 Lockwasher, 1 Nut	Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	SMB	Solder Cup	Solder	Gold	Bulkhead - Front Side Nut
AMPHENOL RF 82-312	Silver	Male Pin, Plug		Nickel	11 GHz	1	-55 °C	85 °C	Brass	500	1 Braid Clamp, 1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 1 Washer, 2 Insulators	Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	N Type	Solder	Clamp	Silver		1500 V	0.15 dB	213, 214, 225, 302, 393, 87, 8A, 9, 9A, 9B, RG-8	Free Hanging (In-Line)	Weatherproof
AMPHENOL RF 15875	Silver	Male Pin, Plug	Bayonet Lock	Nickel	4 GHz	1	-65 ░C	165 °C	Brass	500		Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	BNC	Solder	Clamp	Silver		500 V	0.2 dB		Free Hanging (In-Line)	Weatherproof
AMPHENOL RF 225-107P-52A	Silver	Male Pin, Plug		White Bronze	20 GHz	1	-65 ░C	165 °C	Brass		1 Connector, 1 End Cap, 1 Insulator	Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	2.2/5	Solder	Solder	White				RG-405, Semi Rigid	Free Hanging (In-Line), Right Angle		0.085 in	0.086 in
AMPHENOL RF 82-101	Silver			Nickel	11 GHz		-65 ░C	165 °C	Brass			Polytetrafluoroethylene (PTFE)	50 Ohms	Beryllium Copper									Free Hanging (In-Line)				N to N	Female to Female	Jack to Jack	Straight	Female Socket, N Jack	Female Socket, N Jack	Same Series
AMPHENOL RF 82-64	Silver			Nickel	11 GHz		-65 ░C	165 °C	Brass	500		Polytetrafluoroethylene (PTFE)	50 Ohms	Beryllium Copper									Free Hanging (In-Line), Right Angle	IP67 - Dust Tight, Waterproof			N to N		Plug to Jack	Right Angle	Female Socket, N Jack	N Plug, Male Pin	Same Series
AMPHENOL RF 83-1R	Silver	Female Socket, Receptacle		Nickel	300 MHz	1			Zinc Die Cast			Polybutylene Terephthalate (PBT), Polyester		Brass	UHF	Solder Cup	Solder	Silver	Flange	500 V														Non-Constant
AMPHENOL RF 031-5	Silver	Female Socket, Jack	Bayonet Lock	Nickel	4 GHz	1	-65 ░C	165 °C	Brass	500	1 Braid Clamp, 1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 1 Washer	Polytetrafluoroethylene (PTFE)	50 Ohms	Beryllium Copper	BNC	Crimp, Solder	Clamp	Silver		500 V	0.2 dB	141, 141A, 142, 142B, 223, 400, 55A, 55B, 58, 58A, 58B, 58C, RG-55	Free Hanging (In-Line)	Weatherproof
AMPHENOL RF 81-115N-1000	Gold	Male Pin, Plug		Nickel	2.5 GHz	1	-55 °C	85 °C	Brass		1 Connector, 1 Ferrule	Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	Mini, UHF	Crimp, Solder	Crimp	Silver		335 V		141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Free Hanging (In-Line)
AMPHENOL RF 83-1J	Silver			Nickel	300 MHz		-55 °C	85 °C	Brass			Polystyrene (PS)		Brass									Free Hanging (In-Line)				UHF to UHF	Female to Female	Jack to Jack	Straight	Female Socket, UHF Jack		Same Series	Non-Constant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.08
		10	$ 19.14
		25	$ 18.14
		50	$ 17.88
		100	$ 15.77
		250	$ 14.72
		500	$ 14.41

Description

General part information

- Series

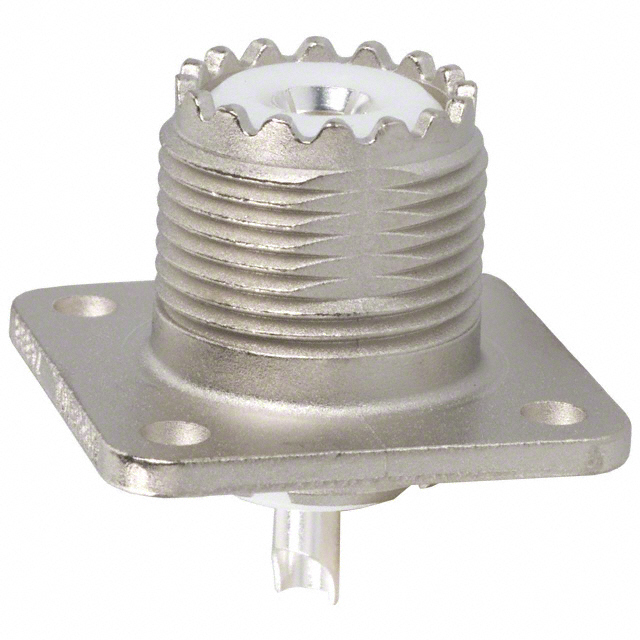

UHF Connector Receptacle, Female Socket Non-Constant Panel Mount Solder Cup

Documents

Technical documentation and resources
