2952350
ActivePhoenix Contact

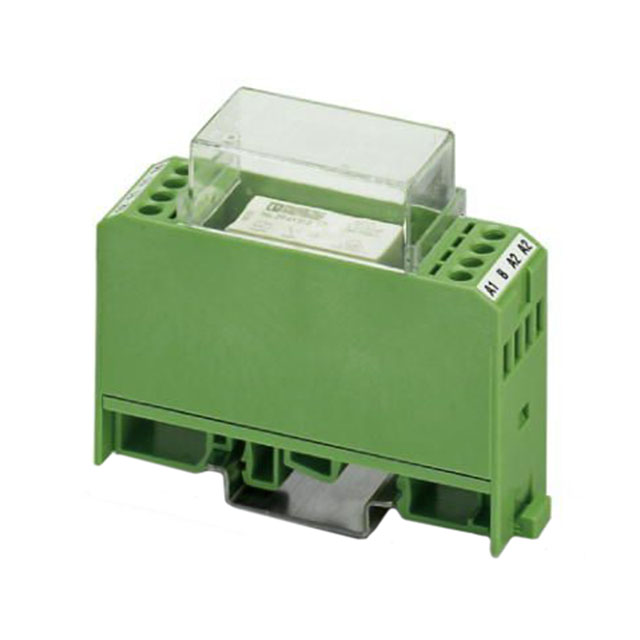

RELAY GEN PURPOSE SPDT 5A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2952350
ActivePhoenix Contact
RELAY GEN PURPOSE SPDT 5A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2952350 | 29523 Series |
|---|---|---|
| Approval Agency | - | EAC |
| Coil Current | 21 mA | 21 mA |
| Coil Resistance | - | 1142 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VDC | 24 VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Contact Rating (Current) | 5 A | 5 A |
| Features | Socket Included, Diode, Lighted Indicator | Socket Included, Diode, Lighted Indicator |
| Load - Max Switching | - | 120 - 1250 VA |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 9 ms | 9 ms |
| Operating Temperature [Max] | 50 °C | 50 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 10 ms | 10 ms |
| Switching Voltage | 250 VAC, 110 VDC | 110 - 250 VAC |
| Termination Style | Screw Terminal | Screw Terminal |
29523 Series
RELAY GEN PURPOSE SPDT 5A 24V
| Part | Contact Form | Approval Agency | Contact Rating (Current) | Coil Voltage | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Relay Type | Load - Max Switching | Features | Operate Time | Coil Resistance | Switching Voltage | Coil Type | Contact Material | Coil Current | Release Time | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2952363 | SPDT (1 Form C) | EAC | 5 A | 24 VDC | Screw Terminal | 50 °C | -20 C | General Purpose | 120 W, 1250 VA | Socket Included | 9 ms | 1142 Ohms | 250 VAC, 250 VDC | Non Latching | Silver Nickel (AgNi) | 21 mA | 10 ms | DIN Rail |
Phoenix Contact 2952350 | SPDT (1 Form C) | 5 A | 24 VDC | Screw Terminal | 50 °C | -20 C | General Purpose | Diode, Lighted Indicator, Socket Included | 9 ms | 110 VDC, 250 VAC | Non Latching | Silver Nickel (AgNi) | 21 mA | 10 ms | DIN Rail |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 115.84 | |
Description
General part information
29523 Series
General Purpose Relay SPDT (1 Form C) 24VDC Coil DIN Rail
