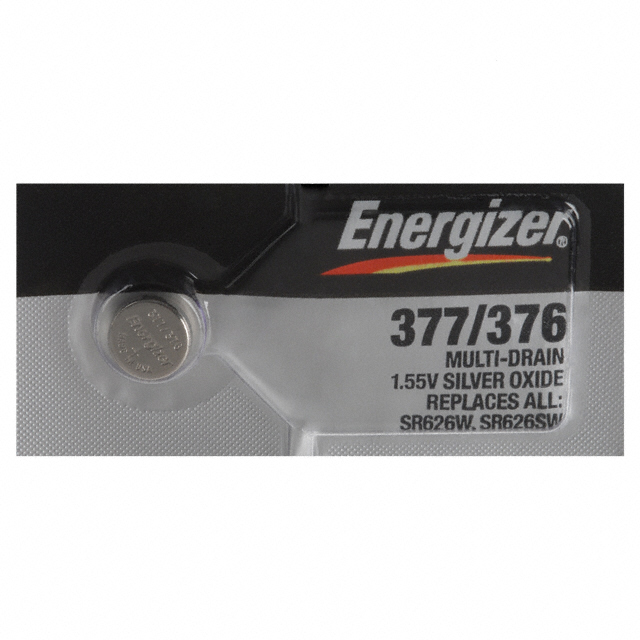

377-376TZ
ActiveEnergizer Battery Company
BATTERY SLVR OX 1.55V COIN 6.8MM
377-376TZ
ActiveEnergizer Battery Company
BATTERY SLVR OX 1.55V COIN 6.8MM
Description
General part information
377-376TZ
Coin, 6.8mm Silver Oxide 1.55 V Battery Non-Rechargeable (Primary)
Technical Specifications
Parameters and characteristics for this part
| Specification | 377-376TZ |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size Dimension | 6.8 mm |
| Battery Chemistry | Silver Oxide |
| Capacity (Charge) | 24 mAh |
| Discharge Rate (Current) | 34 µA |
| Shelf Life | 60 Months |
| Shelf Life Start | Date of Manufacture |
| Size / Dimension Diameter | 0.27 in |
| Size / Dimension Height | 0.1 in |
| Storage/Refrigeration Temperature | 69.8 °F |
| Termination Style | Requires Holder |
| Voltage - Rated | 1.55 V |
| Weight | 0.57 g |
