MS3108A28-11P
ActiveAmphenol Industrial Operations

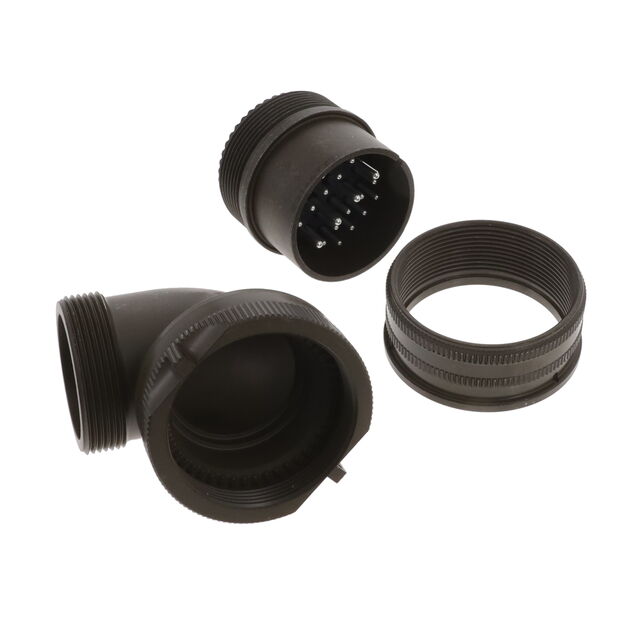

MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3108A28-11P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3108A28-11P | MS3108A28 Series |
|---|---|---|
| - | - | |
| Applications | Military, Marine | Military, Marine |
| Color | Olive Drab | Olive Drab |
| Connector Type | Plug, Male Pins | Plug, Male Pins, Female Sockets |
| Contact Finish - Mating | Silver | Silver |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 13 A, 23 A | 13 - 23 A |
| Features | - | Coupling Nut |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | 22 positions | 22 - 37 positions |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-5015 | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 28-11 | 28-11, 28-12 |
| Shell Size - Insert | - | 21 |
| Shell Size - Insert | - | 28 |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 92.53 | |
| 10 | $ 84.91 | |||
| 25 | $ 81.64 | |||
| 50 | $ 78.92 | |||
| 100 | $ 74.57 | |||
MS3108A28 Series
PLUG
| Part | Insert Material | Shell Finish | Contact Material | Shell Size - Insert | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | Mounting Type | Shell Material | Shielding | Primary Material | Grade | Orientation | Contact Finish - Mating | Applications | Ingress Protection | Current Rating (Amps) | Number of Positions | Qualification | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3108A28-12S | |||||||||||||||||||||||
Amphenol Industrial Operations MS3108A28-11P | Neoprene | Olive Drab Chromate over Cadmium | Copper Alloy | 28-11 | Male Pins, Plug | -55 °C | 125 °C | Olive Drab | Free Hanging (In-Line), Right Angle | Aluminum Alloy | Unshielded | Metal | Military | N | Silver | Marine, Military | Environment Resistant | 13 A, 23 A | 22 positions | MIL-DTL-5015 | |||
Amphenol Industrial Operations MS3108A28-4P | |||||||||||||||||||||||
Amphenol Industrial Operations MS3108A28-15P | |||||||||||||||||||||||
Amphenol Industrial Operations MS3108A28-21S | Neoprene | Olive Drab Chromate over Cadmium | Copper Alloy | Female Sockets, Plug | -55 °C | 125 °C | Olive Drab | Free Hanging (In-Line), Right Angle | Aluminum Alloy | Unshielded | Metal | Military | N | Silver | Marine, Military | Environment Resistant | 13 A | 37 | MIL-DTL-5015 | 21 | 28 | ||
Amphenol Industrial Operations MS3108A28-8S | |||||||||||||||||||||||
Amphenol Industrial Operations MS3108A28-16S | |||||||||||||||||||||||
Amphenol Industrial Operations MS3108A28-16P | |||||||||||||||||||||||
Amphenol Industrial Operations MS3108A28-10P | |||||||||||||||||||||||
Amphenol Industrial Operations MS3108A28-7S |
Description
General part information
MS3108A28 Series
22 Position Circular Connector Plug, Male Pins Solder Cup
