1085 SL005

Active

ALPHA WIRE

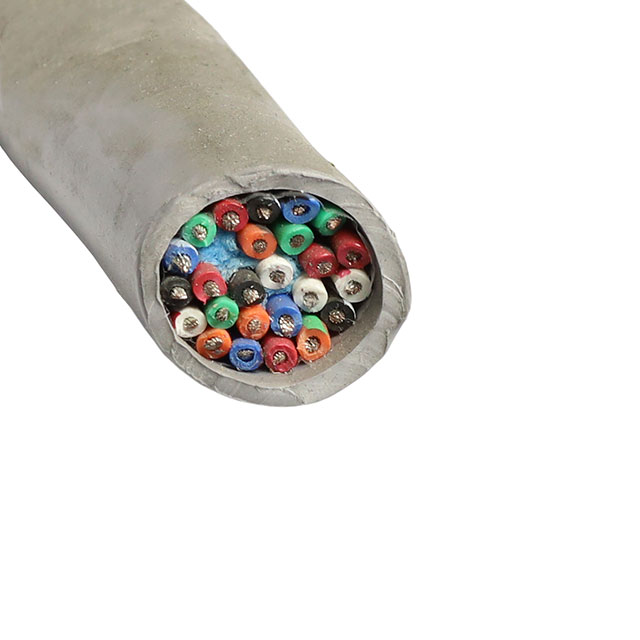

CABLE 25COND 16AWG SLATE 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 25COND 16AWG SLATE 100'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1085 SL005	1085 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	19	19
Conductor Strand [custom]	0.0117 in	0.0117 in
Jacket (Insulation) Diameter [diameter]	23.04 mm	23.04 mm
Jacket (Insulation) Diameter [diameter]	0.907 in	0.907 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	2.108 mm	2.108 mm
Jacket (Insulation) Thickness	0.083 in	0.083 in
Jacket Color	Slate	Slate
Length [x]	30.5 m	30.5 - 152.4 m
Length [x]	100 ft	100 - 500 ft
Number of Conductors	25	25
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Usage	Control, Communication	Control, Communication
Voltage	600 V	600 V
Wire Gauge	16 AWG	16 AWG

CABLE 25COND 16AWG SLATE 100'

Part	Jacket Color	Cable Type	Number of Conductors	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Length [x]	Length [x]	Conductor Material	Voltage
ALPHA WIRE 1085 SL005	Slate	Multi-Conductor	25	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Communication, Control	23.04 mm	0.907 in	16 AWG	2.108 mm	0.083 in	19	0.0117 in	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	Copper, Tinned	600 V
ALPHA WIRE 1085 SL002	Slate	Multi-Conductor	25	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Communication, Control	23.04 mm	0.907 in	16 AWG	2.108 mm	0.083 in	19	0.0117 in	Poly-Vinyl Chloride (PVC)	152.4 m	500 '	Copper, Tinned	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 2408.10

General part information

25 Conductor Multi-Conductor Cable Slate 16 AWG 100.0' (30.5m)
