EK508V-05P
ActiveDinkle Corporation, USA
TERM BLK 5POS 5.00MM SCRW PLG
EK508V-05P
ActiveDinkle Corporation, USA
TERM BLK 5POS 5.00MM SCRW PLG
Description
General part information
EK508V-05P

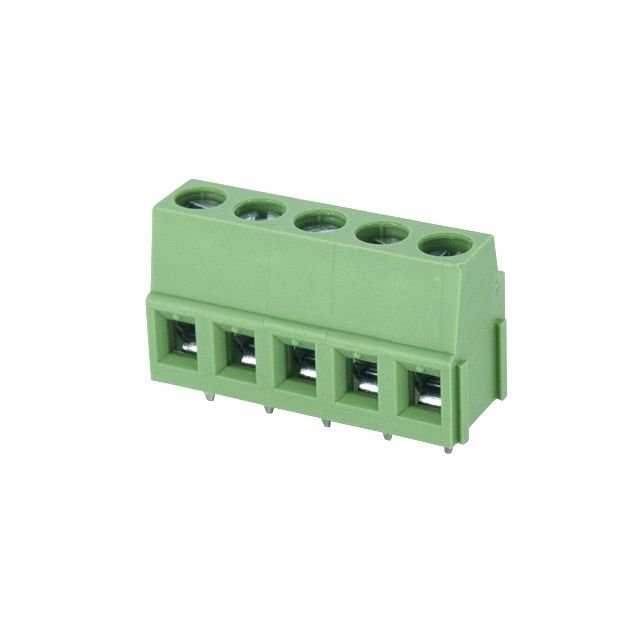

5 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | EK508V-05P |
|---|---|
| Color | Green |
| Current | 20 A |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.197 in, 5.08 mm |
| Positions Per Level | 5 |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
