1-2016698-1
ActiveTE Connectivity AMP Connectors
UMCC CA, GEN4-GEN4,1.13,L55MM,BK
1-2016698-1
ActiveTE Connectivity AMP Connectors
UMCC CA, GEN4-GEN4,1.13,L55MM,BK
Description
General part information
1-2016698-1

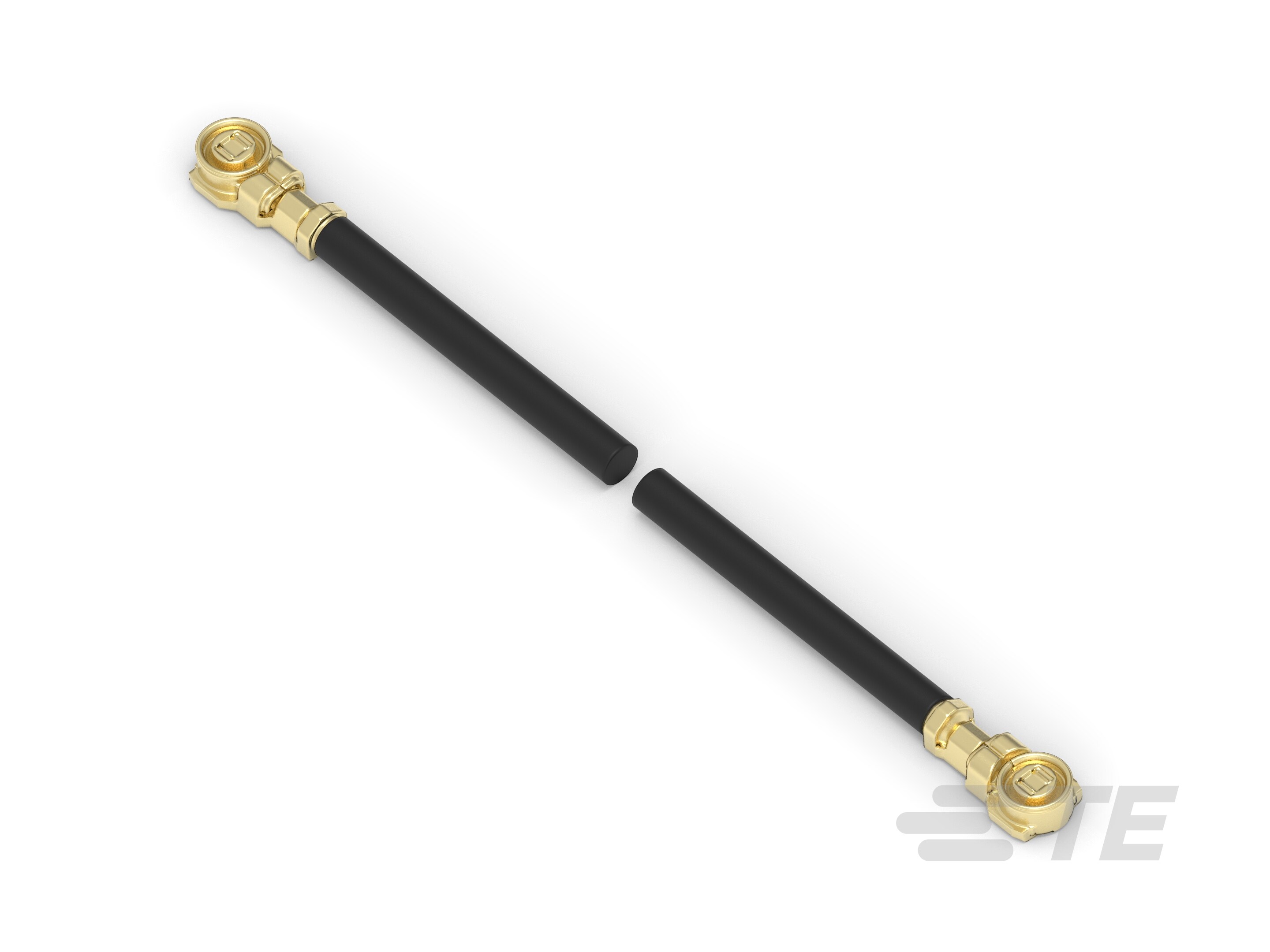

UMCC Cable Assembly, .55 m [.18 ft], Black Cable, 0 – 9 GHz, 50 ohm, FEP Jacket, 32 AWG, 1.13 mm [.044 in] Diameter, UMCC GEN 4 Plug End A
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2016698-1 |
|---|---|
| 1st Connector | U.FL (UMCC) Plug, Right Angle |
| 1st Connector - Orientation | Right Angle |
| 1st Connector - Type | U.FL (UMCC) Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, U.FL (UMCC) Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Outer Diameter | 1.13 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable, 1.13mm OD Coaxial Cable |
| Cable Type Size | 1.13 |
| Color | Black |
| Frequency - Max | 9 GHz |
| Length | 2.165 in |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | U.FL (UMCC) |
