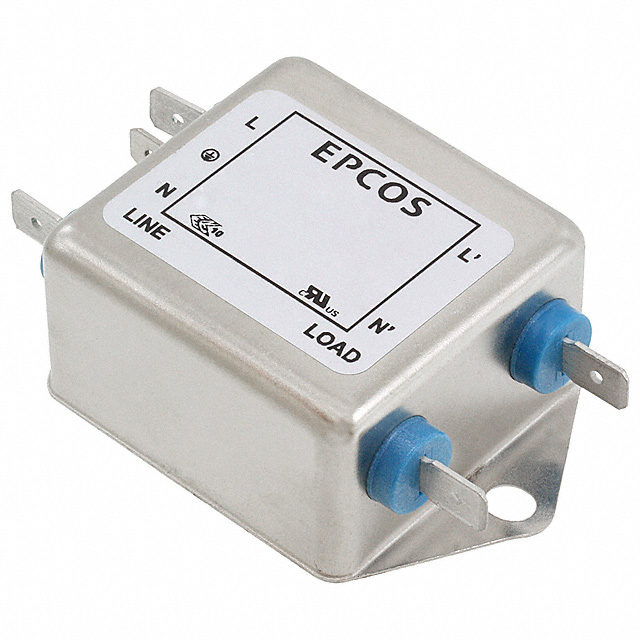

B84111F0000M120
ActiveEPCOS - TDK Electronics
LINE FILTER 250VDC/VAC 20A CHAS
B84111F0000M120
ActiveEPCOS - TDK Electronics
LINE FILTER 250VDC/VAC 20A CHAS
Description
General part information
B84111F0000M120
Single Phase EMC/EMI Line Filter 20 A 250V 250V 50/60Hz Single Stage Quick Connect
Technical Specifications
Parameters and characteristics for this part
| Specification | B84111F0000M120 |
|---|---|
| Applications | General Purpose |
| Approval Agency | cUR, UR, ENEC |
| Configuration | Single Stage |
| Current | 20 A |
| Filter Type | Single Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Inductance | 430 µH |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 250 V |
| Voltage - Rated DC | 250 V |
