ECH381V-13P
ActiveDinkle Corporation, USA
TERM BLK 13POS 3.81MM HDR
ECH381V-13P
ActiveDinkle Corporation, USA
TERM BLK 13POS 3.81MM HDR
Description
General part information
ECH381V-13P

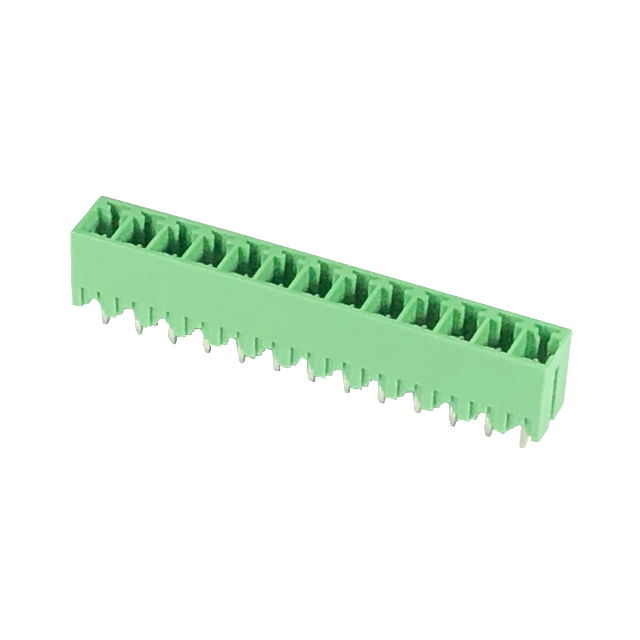

13 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | ECH381V-13P |
|---|---|
| Color | Green |
| Current - IEC | 14 A |
| Current - UL | 8 A |
| Header Orientation | Vertical |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 13 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.15 in |
| Positions Per Level | 13 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - IEC | 320 A, 320 V |
| Voltage - UL | 300 A, 300 V |
