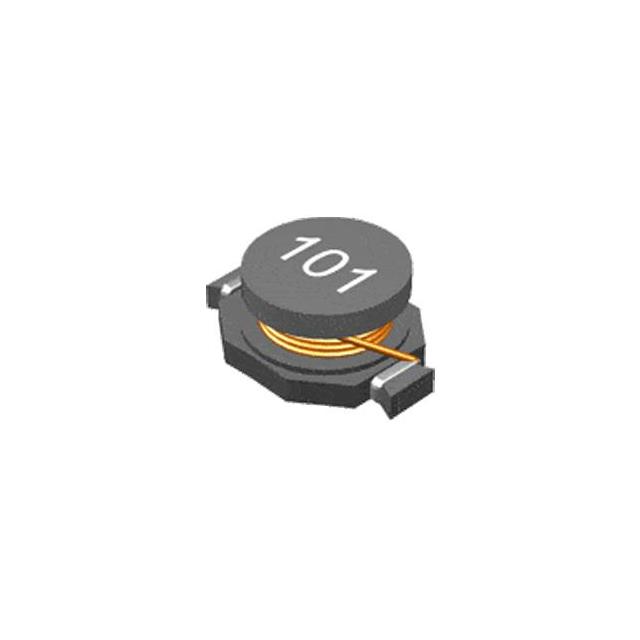

CTDO1813PF-223HC
ActiveCentral Technologies
22UH SMD POWER INDUCTOR
CTDO1813PF-223HC
ActiveCentral Technologies
22UH SMD POWER INDUCTOR
Description
General part information
CTDO1813PF-223HC
22 µH Unshielded Wirewound Inductor 1 A 250mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CTDO1813PF-223HC |
|---|---|
| Current - Saturation (Isat) | 1.2 A |
| Current Rating | 1 A |
| DC Resistance (DCR) (Max) | 250 mOhm |
| Frequency - Self Resonant | 25 MHz |
| Height - Seated (Max) | 0.197 in |
| Inductance | 22 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.35 in |
| Size / Dimension Width | 0.24 in |
| Tolerance | 20 % |
| Type | Wirewound |
