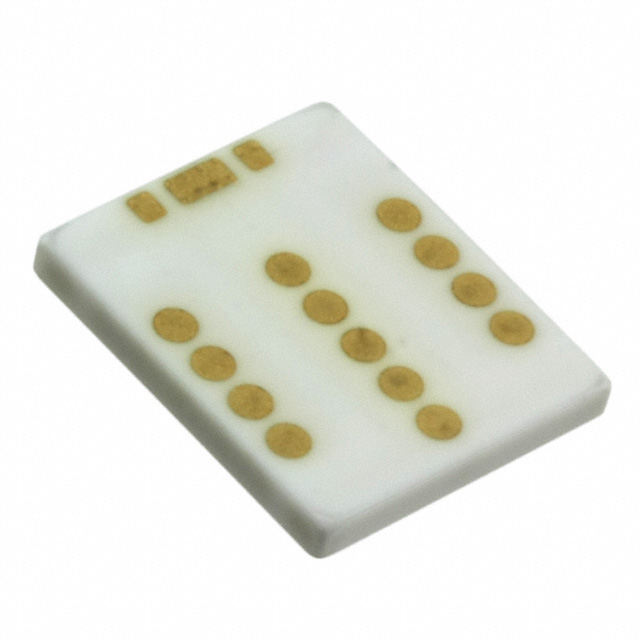

ANT1085-4R1-01A
ObsoleteTDK Corporation
RF ANT 4.2GHZ CHIP SOLDER SMD
ANT1085-4R1-01A
ObsoleteTDK Corporation
RF ANT 4.2GHZ CHIP SOLDER SMD
Description
General part information
ANT1085-4R1-01A
RF ANTENNA Chip Solder Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT1085-4R1-01A |
|---|---|
| Antenna Type | Chip |
| Frequency (Center/Band) | 4.2 GHz |
| Frequency Group | SHF, UHF |
| Frequency Group Maximum (UHF) | 4 GHz |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 3 GHz |
| Frequency Range (Max) | 5.2 GHz |
| Frequency Range (Min) | 3.1 GHz |
| Gain | 2 dBi |
| Height (Max) | 0.047 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Termination | Solder |
| VSWR | 3 |
